Simple fractional crystallization model
This notebook shows how to calculate the sulfide and sulfate saturation contents for a petrolog fractional crystallization path using a wide variety of different models You can download the Petrolog file here: -https://github.com/PennyWieser/PySulfSat/blob/main/docs/Examples/Intro_Example_Petrolog_FC/PetrologCalculations.xlsx
If you havent done so already, you need to pip install PySulfSat
Do this by removing the #. You only need to do this once per computer. After your initial installation, you will want to upgrade instead using the second command
[1]:
#!pip install PySulfSat
#!pip install PySulfSat --upgrade
[2]:
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import PySulfSat as ss
pd.options.display.max_columns = None
[32]:
pd.__version__
[32]:
'2.1.1'
Import data
Here we have Ni and Cu contents in Petrolog, although in reality, its better to fit to observed Ni and Cu contents in your samples, as once you start to remove sulfide, you change Cu and Ni (alternatively an iterative model could be built of how these are removed).
[3]:
df_out=ss.import_data('PetrologCalculations.xlsx', Petrolog=True)
df_out.head()
We have replaced all missing liquid oxides and strings with zeros.
[3]:
SiO2_Liq | TiO2_Liq | Al2O3_Liq | FeOt_Liq | MnO_Liq | MgO_Liq | CaO_Liq | Na2O_Liq | K2O_Liq | P2O5_Liq | H2O_Liq | Fe3Fet_Liq | Ni_Liq_ppm | Cu_Liq_ppm | SiO2_magma | TiO2_magma | Al2O3_magma | Fe2O3_magma | FeO_magma | MnO_magma | MgO_magma | CaO_magma | Na2O_magma | K2O_magma | P2O5_magma | Cr2O3_magma | Ni_magma | Cu_magma | Cr2O3_Liq | Ni_Liq | Cu_Liq | SiO2_cumulate | TiO2_cumulate | Al2O3_cumulate | Fe2O3_cumulate | FeO_cumulate | MnO_cumulate | MgO_cumulate | CaO_cumulate | Na2O_cumulate | K2O_cumulate | P2O5_cumulate | Cr2O3_cumulate | Ni_cumulate | Cu_cumulate | Temperature | Temperature_Olv | Olv_Fo_magma | Olv_Kd | Olv_Fo_cumulate | Pressure(kbar) | Lg(fO2) | dNNO | density | Ln(viscosity) | Melt_%_magma | Olv_%_magma | Olv_Peritectic | Fluid_%_magma | Olv_%_cumulate | Sample | Unnamed:58 | T_K | P_kbar | Fraction_melt | Sample_ID_Liq | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0 | 49.9010 | 0.9981 | 14.9715 | 8.980926 | 0.0998 | 9.9763 | 11.9772 | 2.4953 | 0.1996 | 0.0998 | 0.0 | 0.098489 | 697.8 | 99.8 | 49.9010 | 0.9981 | 14.9715 | 0.9839 | 8.0964 | 0.0998 | 9.9763 | 11.9772 | 2.4953 | 0.1996 | 0.0998 | 0.0998 | 697.8 | 99.8 | 0.0998 | 697.8 | 99.8 | 40.2986 | 0 | 0 | 0 | 11.7372 | 0 | 46.9121 | 0 | 0 | 0 | 0 | 0 | 8257.6 | 10.0 | 1253.281 | 1253.281 | 87.69 | 0.308 | 87.69 | 1 | -7.72 | -0.7 | 2.683 | 6.25 | 99.9900 | 0 | N | 0 | 0.0100 | PetrologDefault | 08:21:15 | 1526.431 | 1 | 0.999900 | 0 |
1 | 49.9978 | 1.0081 | 15.1220 | 8.951296 | 0.1008 | 9.6064 | 12.0976 | 2.5203 | 0.2016 | 0.1008 | 0.0 | 0.097851 | 624.6 | 100.7 | 49.9978 | 1.0081 | 15.1220 | 0.9743 | 8.0754 | 0.1008 | 9.6064 | 12.0976 | 2.5203 | 0.2016 | 0.1008 | 0.1008 | 624.6 | 100.7 | 0.1008 | 624.6 | 100.7 | 40.2698 | 0 | 0 | 0 | 11.9273 | 0 | 46.7855 | 0 | 0 | 0 | 0 | 0 | 7984.5 | 10.0 | 1243.430 | 1243.430 | 87.28 | 0.309 | 87.49 | 1 | -7.83 | -0.7 | 2.682 | 6.38 | 98.9950 | 0 | N | 0 | 1.0050 | PetrologDefault | 08:21:15 | 1516.580 | 1 | 0.989950 | 1 |
2 | 50.0982 | 1.0185 | 15.2770 | 8.916645 | 0.1018 | 9.2279 | 12.2216 | 2.5462 | 0.2037 | 0.1018 | 0.0 | 0.097284 | 554.8 | 101.6 | 50.0982 | 1.0185 | 15.2770 | 0.9649 | 8.0492 | 0.1018 | 9.2279 | 12.2216 | 2.5462 | 0.2037 | 0.1018 | 0.1018 | 554.8 | 101.6 | 0.1018 | 554.8 | 101.6 | 40.2390 | 0 | 0 | 0 | 12.1280 | 0 | 46.6507 | 0 | 0 | 0 | 0 | 0 | 7708.8 | 10.1 | 1233.064 | 1233.064 | 86.83 | 0.310 | 87.27 | 1 | -7.94 | -0.7 | 2.681 | 6.52 | 97.9904 | 0 | N | 0 | 2.0096 | PetrologDefault | 08:21:15 | 1506.214 | 1 | 0.979904 | 2 |
3 | 50.2003 | 1.0289 | 15.4337 | 8.877334 | 0.1029 | 8.8486 | 12.3469 | 2.5723 | 0.2058 | 0.1029 | 0.0 | 0.096823 | 489.9 | 102.6 | 50.2003 | 1.0289 | 15.4337 | 0.9561 | 8.0178 | 0.1029 | 8.8486 | 12.3469 | 2.5723 | 0.2058 | 0.1029 | 0.1029 | 489.9 | 102.6 | 0.1029 | 489.9 | 102.6 | 40.2069 | 0 | 0 | 0 | 12.3359 | 0 | 46.5096 | 0 | 0 | 0 | 0 | 0 | 7436.5 | 10.1 | 1222.361 | 1222.361 | 86.36 | 0.311 | 87.05 | 1 | -8.05 | -0.7 | 2.680 | 6.67 | 96.9959 | 0 | N | 0 | 3.0041 | PetrologDefault | 08:21:15 | 1495.511 | 1 | 0.969959 | 3 |
4 | 50.3062 | 1.0397 | 15.5950 | 8.832002 | 0.1040 | 8.4612 | 12.4760 | 2.5992 | 0.2079 | 0.1040 | 0.0 | 0.096445 | 428.7 | 103.5 | 50.3062 | 1.0397 | 15.5950 | 0.9475 | 7.9802 | 0.1040 | 8.4612 | 12.4760 | 2.5992 | 0.2079 | 0.1040 | 0.1040 | 428.7 | 103.5 | 0.1040 | 428.7 | 103.5 | 40.1725 | 0 | 0 | 0 | 12.5558 | 0 | 46.3589 | 0 | 0 | 0 | 0 | 0 | 7162.8 | 10.2 | 1211.080 | 1211.080 | 85.84 | 0.312 | 86.81 | 1 | -8.18 | -0.7 | 2.679 | 6.83 | 95.9923 | 0 | N | 0 | 4.0077 | PetrologDefault | 08:21:15 | 1484.230 | 1 | 0.959923 | 4 |
Example 1 - SCSS calculations
Example 1a: Calculate SCSS using Smythe
First, we perform calculations using a Fe/FeNiCu ratio determined by measuring sulfides in the sample suite we are trying to model by quantitative EDS analysis (see Wieser et al. 2019)
[4]:
Smythe_FixedSulf=ss.calculate_S2017_SCSS(df=df_out,
T_K=df_out['T_K'], P_kbar=df_out['P_kbar'],
Fe3Fet_Liq=df_out['Fe3Fet_Liq'],
Fe_FeNiCu_Sulf=0.65)
Smythe_FixedSulf.head()
Using inputted Fe_FeNiCu_Sulf ratio for calculations.
no non ideal SCSS as no Cu/CuFeNiCu
[4]:
SCSS2_ppm_ideal_Smythe2017 | SCSS2_ppm_ideal_Smythe2017_1sigma | T_Input_K | P_Input_kbar | Fe_FeNiCu_Sulf | Fe3Fet_Liq_input | Si_wt_atom | Ti_wt_atom | Al_wt_atom | Mg_wt_atom | Mn_wt_atom | Fe2_wt_atom | Fe3_wt_atom | Ca_wt_atom | Na_wt_atom | K_wt_atom | P_wt_atom | H_wt_atom | Si_XA_ideal | Ti_XA_ideal | Al_XA_ideal | Mg_XA_ideal | Fe2_XA_ideal | Ca_XA_ideal | Na_XA_ideal | K_XA_ideal | H_XA_ideal | Si*Fe_ideal | Si_XA_non_ideal | Ti_XA_non_ideal | Al_XA_non_ideal | Mg_XA_non_ideal | Fe2_XA_non_ideal | Ca_XA_non_ideal | Na_XA_non_ideal | K_XA_non_ideal | H_XA_non_ideal | Si*Fe_non_ideal | log_SCSS_ideal | Fe_FeNiCu_Sulf_calc | SiO2_Liq | TiO2_Liq | Al2O3_Liq | FeOt_Liq | MnO_Liq | MgO_Liq | CaO_Liq | Na2O_Liq | K2O_Liq | P2O5_Liq | H2O_Liq | Fe3Fet_Liq | Ni_Liq_ppm | Cu_Liq_ppm | SiO2_magma | TiO2_magma | Al2O3_magma | Fe2O3_magma | FeO_magma | MnO_magma | MgO_magma | CaO_magma | Na2O_magma | K2O_magma | P2O5_magma | Cr2O3_magma | Ni_magma | Cu_magma | Cr2O3_Liq | Ni_Liq | Cu_Liq | SiO2_cumulate | TiO2_cumulate | Al2O3_cumulate | Fe2O3_cumulate | FeO_cumulate | MnO_cumulate | MgO_cumulate | CaO_cumulate | Na2O_cumulate | K2O_cumulate | P2O5_cumulate | Cr2O3_cumulate | Ni_cumulate | Cu_cumulate | Temperature | Temperature_Olv | Olv_Fo_magma | Olv_Kd | Olv_Fo_cumulate | Pressure(kbar) | Lg(fO2) | dNNO | density | Ln(viscosity) | Melt_%_magma | Olv_%_magma | Olv_Peritectic | Fluid_%_magma | Olv_%_cumulate | Sample | Unnamed:58 | T_K | P_kbar | Fraction_melt | Sample_ID_Liq | Fe_FeNiCu_Sulf_calc | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0 | 1163.632126 | 317.869126 | 1526.431 | 1 | 0.65 | 0.098489 | 0.458760 | 0.006900 | 0.162217 | 0.136728 | 0.000777 | 0.062247 | 0.006799 | 0.117975 | 0.044478 | 0.002341 | 0.000777 | 0.0 | -12643.917846 | -77.425761 | -2992.954217 | -1910.042747 | -2133.469827 | -923.846254 | -589.186980 | -67.922629 | -0.0 | 3328.767457 | -12843.656196 | -73.937634 | -3082.117373 | -1984.261077 | -2172.132780 | -1041.911444 | -609.912056 | -66.914620 | -0.0 | 3364.402871 | 7.059302 | 0.65 | 49.9010 | 0.9981 | 14.9715 | 8.980926 | 0.0998 | 9.9763 | 11.9772 | 2.4953 | 0.1996 | 0.0998 | 0.0 | 0.098489 | 697.8 | 99.8 | 49.9010 | 0.9981 | 14.9715 | 0.9839 | 8.0964 | 0.0998 | 9.9763 | 11.9772 | 2.4953 | 0.1996 | 0.0998 | 0.0998 | 697.8 | 99.8 | 0.0998 | 697.8 | 99.8 | 40.2986 | 0 | 0 | 0 | 11.7372 | 0 | 46.9121 | 0 | 0 | 0 | 0 | 0 | 8257.6 | 10.0 | 1253.281 | 1253.281 | 87.69 | 0.308 | 87.69 | 1 | -7.72 | -0.7 | 2.683 | 6.25 | 99.9900 | 0 | N | 0 | 0.0100 | PetrologDefault | 08:21:15 | 1526.431 | 1 | 0.999900 | 0 | 0.65 |
1 | 1132.187652 | 309.279446 | 1516.580 | 1 | 0.65 | 0.097851 | 0.460128 | 0.006977 | 0.164018 | 0.131795 | 0.000786 | 0.062150 | 0.006740 | 0.119285 | 0.044970 | 0.002367 | 0.000785 | 0.0 | -12681.596545 | -78.282676 | -3026.179002 | -1841.131776 | -2130.145227 | -934.101871 | -595.707729 | -68.674435 | -0.0 | 3333.484439 | -12881.930112 | -74.755944 | -3116.331958 | -1912.672440 | -2168.747932 | -1053.477703 | -616.662177 | -67.655269 | -0.0 | 3369.170350 | 7.031907 | 0.65 | 49.9978 | 1.0081 | 15.1220 | 8.951296 | 0.1008 | 9.6064 | 12.0976 | 2.5203 | 0.2016 | 0.1008 | 0.0 | 0.097851 | 624.6 | 100.7 | 49.9978 | 1.0081 | 15.1220 | 0.9743 | 8.0754 | 0.1008 | 9.6064 | 12.0976 | 2.5203 | 0.2016 | 0.1008 | 0.1008 | 624.6 | 100.7 | 0.1008 | 624.6 | 100.7 | 40.2698 | 0 | 0 | 0 | 11.9273 | 0 | 46.7855 | 0 | 0 | 0 | 0 | 0 | 7984.5 | 10.0 | 1243.430 | 1243.430 | 87.28 | 0.309 | 87.49 | 1 | -7.83 | -0.7 | 2.682 | 6.38 | 98.9950 | 0 | N | 0 | 1.0050 | PetrologDefault | 08:21:15 | 1516.580 | 1 | 0.989950 | 1 | 0.65 |
2 | 1099.523987 | 300.356720 | 1506.214 | 1 | 0.65 | 0.097284 | 0.461540 | 0.007056 | 0.165875 | 0.126736 | 0.000794 | 0.062014 | 0.006682 | 0.120635 | 0.045480 | 0.002394 | 0.000794 | 0.0 | -12720.511949 | -79.173986 | -3060.433090 | -1770.461624 | -2125.481450 | -944.675207 | -602.466551 | -69.463239 | -0.0 | 3336.392958 | -12921.460271 | -75.607099 | -3151.606511 | -1839.256265 | -2163.999637 | -1065.402284 | -623.658745 | -68.432367 | -0.0 | 3372.110005 | 7.002633 | 0.65 | 50.0982 | 1.0185 | 15.2770 | 8.916645 | 0.1018 | 9.2279 | 12.2216 | 2.5462 | 0.2037 | 0.1018 | 0.0 | 0.097284 | 554.8 | 101.6 | 50.0982 | 1.0185 | 15.2770 | 0.9649 | 8.0492 | 0.1018 | 9.2279 | 12.2216 | 2.5462 | 0.2037 | 0.1018 | 0.1018 | 554.8 | 101.6 | 0.1018 | 554.8 | 101.6 | 40.2390 | 0 | 0 | 0 | 12.1280 | 0 | 46.6507 | 0 | 0 | 0 | 0 | 0 | 7708.8 | 10.1 | 1233.064 | 1233.064 | 86.83 | 0.310 | 87.27 | 1 | -7.94 | -0.7 | 2.681 | 6.52 | 97.9904 | 0 | N | 0 | 2.0096 | PetrologDefault | 08:21:15 | 1506.214 | 1 | 0.979904 | 2 | 0.65 |
3 | 1066.279038 | 291.275205 | 1495.511 | 1 | 0.65 | 0.096823 | 0.462968 | 0.007136 | 0.167753 | 0.121655 | 0.000804 | 0.061837 | 0.006628 | 0.122000 | 0.045995 | 0.002421 | 0.000803 | 0.0 | -12759.875643 | -80.066770 | -3095.084610 | -1699.479235 | -2119.422207 | -955.366577 | -609.283904 | -70.253349 | -0.0 | 3337.176747 | -12961.445800 | -76.459662 | -3187.290335 | -1765.515721 | -2157.830588 | -1077.459984 | -630.715903 | -69.210751 | -0.0 | 3372.902185 | 6.971930 | 0.65 | 50.2003 | 1.0289 | 15.4337 | 8.877334 | 0.1029 | 8.8486 | 12.3469 | 2.5723 | 0.2058 | 0.1029 | 0.0 | 0.096823 | 489.9 | 102.6 | 50.2003 | 1.0289 | 15.4337 | 0.9561 | 8.0178 | 0.1029 | 8.8486 | 12.3469 | 2.5723 | 0.2058 | 0.1029 | 0.1029 | 489.9 | 102.6 | 0.1029 | 489.9 | 102.6 | 40.2069 | 0 | 0 | 0 | 12.3359 | 0 | 46.5096 | 0 | 0 | 0 | 0 | 0 | 7436.5 | 10.1 | 1222.361 | 1222.361 | 86.36 | 0.311 | 87.05 | 1 | -8.05 | -0.7 | 2.680 | 6.67 | 96.9959 | 0 | N | 0 | 3.0041 | PetrologDefault | 08:21:15 | 1495.511 | 1 | 0.969959 | 3 | 0.65 |
4 | 1031.735153 | 281.838860 | 1484.230 | 1 | 0.65 | 0.096445 | 0.464443 | 0.007218 | 0.169688 | 0.116454 | 0.000813 | 0.061613 | 0.006575 | 0.123408 | 0.046526 | 0.002449 | 0.000813 | 0.0 | -12800.521565 | -80.994067 | -3130.789539 | -1626.819177 | -2111.747851 | -966.392392 | -616.316520 | -71.046416 | -0.0 | 3335.684853 | -13002.733814 | -77.345183 | -3224.058949 | -1690.032319 | -2150.017156 | -1089.894870 | -637.995897 | -69.992049 | -0.0 | 3371.394320 | 6.938997 | 0.65 | 50.3062 | 1.0397 | 15.5950 | 8.832002 | 0.1040 | 8.4612 | 12.4760 | 2.5992 | 0.2079 | 0.1040 | 0.0 | 0.096445 | 428.7 | 103.5 | 50.3062 | 1.0397 | 15.5950 | 0.9475 | 7.9802 | 0.1040 | 8.4612 | 12.4760 | 2.5992 | 0.2079 | 0.1040 | 0.1040 | 428.7 | 103.5 | 0.1040 | 428.7 | 103.5 | 40.1725 | 0 | 0 | 0 | 12.5558 | 0 | 46.3589 | 0 | 0 | 0 | 0 | 0 | 7162.8 | 10.2 | 1211.080 | 1211.080 | 85.84 | 0.312 | 86.81 | 1 | -8.18 | -0.7 | 2.679 | 6.83 | 95.9923 | 0 | N | 0 | 4.0077 | PetrologDefault | 08:21:15 | 1484.230 | 1 | 0.959923 | 4 | 0.65 |
plot results against FeO content
[5]:
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(10,5))
ax1.plot(Smythe_FixedSulf['FeOt_Liq'], Smythe_FixedSulf['SCSS2_ppm_ideal_Smythe2017'],
'-r')
ax1.plot(Smythe_FixedSulf['FeOt_Liq'],
Smythe_FixedSulf['SCSS2_ppm_ideal_Smythe2017']+Smythe_FixedSulf['SCSS2_ppm_ideal_Smythe2017_1sigma'],
':r')
ax1.plot(Smythe_FixedSulf['FeOt_Liq'],
Smythe_FixedSulf['SCSS2_ppm_ideal_Smythe2017']-Smythe_FixedSulf['SCSS2_ppm_ideal_Smythe2017_1sigma'],
':r')
ax1.set_ylabel('SCSS (ppm) Smythe et al. (2017)')
ax1.set_xlabel('FeO$_{T}$ Liq (Wt%)')
ax2.plot(Smythe_FixedSulf['MgO_Liq'], Smythe_FixedSulf['SCSS2_ppm_ideal_Smythe2017'],
'-r')
ax2.plot(Smythe_FixedSulf['MgO_Liq'],
Smythe_FixedSulf['SCSS2_ppm_ideal_Smythe2017']+Smythe_FixedSulf['SCSS2_ppm_ideal_Smythe2017_1sigma'],
':r')
ax2.plot(Smythe_FixedSulf['MgO_Liq'],
Smythe_FixedSulf['SCSS2_ppm_ideal_Smythe2017']-Smythe_FixedSulf['SCSS2_ppm_ideal_Smythe2017_1sigma'],
':r')
ax2.set_ylabel('SCSS (ppm) Smythe et al. (2017)')
ax2.set_xlabel('MgO Liq (Wt%)')
[5]:
Text(0.5, 0, 'MgO Liq (Wt%)')
Example 1b: Using the ONeill model
[6]:
ONeill_FixedSulf=ss.calculate_O2021_SCSS(df=df_out,
T_K=df_out['T_K'], P_kbar=df_out['P_kbar'],
Fe3Fet_Liq=df_out['Fe3Fet_Liq'],
Fe_FeNiCu_Sulf=0.65)
ONeill_FixedSulf.head()
Using inputted Fe_FeNiCu_Sulf ratio for calculations.
[6]:
SCSS2_ppm | LnS | Ln_a_FeO | Ln_a_FeS | DeltaG | LnCS2_calc | SiO2_Liq | TiO2_Liq | Al2O3_Liq | FeOt_Liq | MnO_Liq | MgO_Liq | CaO_Liq | Na2O_Liq | K2O_Liq | P2O5_Liq | H2O_Liq | Fe3Fet_Liq | Ni_Liq_ppm | Cu_Liq_ppm | SiO2_magma | TiO2_magma | Al2O3_magma | Fe2O3_magma | FeO_magma | MnO_magma | MgO_magma | CaO_magma | Na2O_magma | K2O_magma | P2O5_magma | Cr2O3_magma | Ni_magma | Cu_magma | Cr2O3_Liq | Ni_Liq | Cu_Liq | SiO2_cumulate | TiO2_cumulate | Al2O3_cumulate | Fe2O3_cumulate | FeO_cumulate | MnO_cumulate | MgO_cumulate | CaO_cumulate | Na2O_cumulate | K2O_cumulate | P2O5_cumulate | Cr2O3_cumulate | Ni_cumulate | Cu_cumulate | Temperature | Temperature_Olv | Olv_Fo_magma | Olv_Kd | Olv_Fo_cumulate | Pressure(kbar) | Lg(fO2) | dNNO | density | Ln(viscosity) | Melt_%_magma | Olv_%_magma | Olv_Peritectic | Fluid_%_magma | Olv_%_cumulate | Sample | Unnamed:58 | T_K | P_kbar | Fraction_melt | Sample_ID_Liq | Fe_FeNiCu_Sulf_calc | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0 | 1117.435082 | 7.018791 | -2.405572 | -0.495104 | 7.309272 | -2.200950 | 49.9010 | 0.9981 | 14.9715 | 8.980926 | 0.0998 | 9.9763 | 11.9772 | 2.4953 | 0.1996 | 0 | 0.0 | 0.098489 | 697.8 | 99.8 | 49.9010 | 0.9981 | 14.9715 | 0.9839 | 8.0964 | 0.0998 | 9.9763 | 11.9772 | 2.4953 | 0.1996 | 0.0998 | 0.0998 | 697.8 | 99.8 | 0.0998 | 697.8 | 99.8 | 40.2986 | 0 | 0 | 0 | 11.7372 | 0 | 46.9121 | 0 | 0 | 0 | 0 | 0 | 8257.6 | 10.0 | 1253.281 | 1253.281 | 87.69 | 0.308 | 87.69 | 1 | -7.72 | -0.7 | 2.683 | 6.25 | 99.9900 | 0 | N | 0 | 0.0100 | PetrologDefault | 08:21:15 | 1526.431 | 1 | 0.999900 | 0 | 0.65 |
1 | 1085.704562 | 6.989984 | -2.401368 | -0.495001 | 7.373234 | -2.289616 | 49.9978 | 1.0081 | 15.1220 | 8.951296 | 0.1008 | 9.6064 | 12.0976 | 2.5203 | 0.2016 | 0 | 0.0 | 0.097851 | 624.6 | 100.7 | 49.9978 | 1.0081 | 15.1220 | 0.9743 | 8.0754 | 0.1008 | 9.6064 | 12.0976 | 2.5203 | 0.2016 | 0.1008 | 0.1008 | 624.6 | 100.7 | 0.1008 | 624.6 | 100.7 | 40.2698 | 0 | 0 | 0 | 11.9273 | 0 | 46.7855 | 0 | 0 | 0 | 0 | 0 | 7984.5 | 10.0 | 1243.430 | 1243.430 | 87.28 | 0.309 | 87.49 | 1 | -7.83 | -0.7 | 2.682 | 6.38 | 98.9950 | 0 | N | 0 | 1.0050 | PetrologDefault | 08:21:15 | 1516.580 | 1 | 0.989950 | 1 | 0.65 |
2 | 1053.015445 | 6.959413 | -2.397406 | -0.494856 | 7.441489 | -2.384626 | 50.0982 | 1.0185 | 15.2770 | 8.916645 | 0.1018 | 9.2279 | 12.2216 | 2.5462 | 0.2037 | 0 | 0.0 | 0.097284 | 554.8 | 101.6 | 50.0982 | 1.0185 | 15.2770 | 0.9649 | 8.0492 | 0.1018 | 9.2279 | 12.2216 | 2.5462 | 0.2037 | 0.1018 | 0.1018 | 554.8 | 101.6 | 0.1018 | 554.8 | 101.6 | 40.2390 | 0 | 0 | 0 | 12.1280 | 0 | 46.6507 | 0 | 0 | 0 | 0 | 0 | 7708.8 | 10.1 | 1233.064 | 1233.064 | 86.83 | 0.310 | 87.27 | 1 | -7.94 | -0.7 | 2.681 | 6.52 | 97.9904 | 0 | N | 0 | 2.0096 | PetrologDefault | 08:21:15 | 1506.214 | 1 | 0.979904 | 2 | 0.65 |
3 | 1020.044506 | 6.927602 | -2.393819 | -0.494668 | 7.513007 | -2.484556 | 50.2003 | 1.0289 | 15.4337 | 8.877334 | 0.1029 | 8.8486 | 12.3469 | 2.5723 | 0.2058 | 0 | 0.0 | 0.096823 | 489.9 | 102.6 | 50.2003 | 1.0289 | 15.4337 | 0.9561 | 8.0178 | 0.1029 | 8.8486 | 12.3469 | 2.5723 | 0.2058 | 0.1029 | 0.1029 | 489.9 | 102.6 | 0.1029 | 489.9 | 102.6 | 40.2069 | 0 | 0 | 0 | 12.3359 | 0 | 46.5096 | 0 | 0 | 0 | 0 | 0 | 7436.5 | 10.1 | 1222.361 | 1222.361 | 86.36 | 0.311 | 87.05 | 1 | -8.05 | -0.7 | 2.680 | 6.67 | 96.9959 | 0 | N | 0 | 3.0041 | PetrologDefault | 08:21:15 | 1495.511 | 1 | 0.969959 | 3 | 0.65 |
4 | 986.093004 | 6.893751 | -2.390570 | -0.494430 | 7.589560 | -2.591950 | 50.3062 | 1.0397 | 15.5950 | 8.832002 | 0.1040 | 8.4612 | 12.4760 | 2.5992 | 0.2079 | 0 | 0.0 | 0.096445 | 428.7 | 103.5 | 50.3062 | 1.0397 | 15.5950 | 0.9475 | 7.9802 | 0.1040 | 8.4612 | 12.4760 | 2.5992 | 0.2079 | 0.1040 | 0.1040 | 428.7 | 103.5 | 0.1040 | 428.7 | 103.5 | 40.1725 | 0 | 0 | 0 | 12.5558 | 0 | 46.3589 | 0 | 0 | 0 | 0 | 0 | 7162.8 | 10.2 | 1211.080 | 1211.080 | 85.84 | 0.312 | 86.81 | 1 | -8.18 | -0.7 | 2.679 | 6.83 | 95.9923 | 0 | N | 0 | 4.0077 | PetrologDefault | 08:21:15 | 1484.230 | 1 | 0.959923 | 4 | 0.65 |
[7]:
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(10,5))
ax1.plot(Smythe_FixedSulf['FeOt_Liq'], Smythe_FixedSulf['SCSS2_ppm_ideal_Smythe2017'],
'-r', label='S2017')
ax1.plot(Smythe_FixedSulf['FeOt_Liq'],
Smythe_FixedSulf['SCSS2_ppm_ideal_Smythe2017']+Smythe_FixedSulf['SCSS2_ppm_ideal_Smythe2017_1sigma'],
':r', label='S2017+-σ')
ax1.plot(Smythe_FixedSulf['FeOt_Liq'],
Smythe_FixedSulf['SCSS2_ppm_ideal_Smythe2017']-Smythe_FixedSulf['SCSS2_ppm_ideal_Smythe2017_1sigma'],
':r')
ax1.plot(ONeill_FixedSulf['FeOt_Liq'],
ONeill_FixedSulf['SCSS2_ppm'],
'-b', label='ONeill 2021')
ax1.set_ylabel('SCSS (ppm)')
ax1.set_xlabel('FeO$_{T}$ Liq (Wt%)')
ax2.plot(Smythe_FixedSulf['MgO_Liq'], Smythe_FixedSulf['SCSS2_ppm_ideal_Smythe2017'],
'-r')
ax2.plot(Smythe_FixedSulf['MgO_Liq'],
Smythe_FixedSulf['SCSS2_ppm_ideal_Smythe2017']+Smythe_FixedSulf['SCSS2_ppm_ideal_Smythe2017_1sigma'],
':r')
ax2.plot(Smythe_FixedSulf['MgO_Liq'],
Smythe_FixedSulf['SCSS2_ppm_ideal_Smythe2017']-Smythe_FixedSulf['SCSS2_ppm_ideal_Smythe2017_1sigma'],
':r')
ax2.plot(ONeill_FixedSulf['MgO_Liq'],
ONeill_FixedSulf['SCSS2_ppm'],
'-b', label='ONeill 2021')
ax2.set_ylabel('SCSS (ppm)')
ax2.set_xlabel('MgO Liq (Wt%)')
ax1.legend()
[7]:
<matplotlib.legend.Legend at 0x24d89e3e250>
Example 1c: Using the Li and Zhang (2022 model)
[8]:
LZ2022_FixedSulf=ss.calculate_LiZhang2022_SCSS(df=df_out,
T_K=df_out['T_K'], P_kbar=df_out['P_kbar'],
Fe3Fet_Liq=df_out['Fe3Fet_Liq'],
Fe_FeNiCu_Sulf=0.65)
LZ2022_FixedSulf.head()
Using inputted Fe_FeNiCu_Sulf ratio for calculations.
replacing Fe3Fet_Liq in the original dataframe with that input into the function
c:\Users\penny\anaconda3\Lib\site-packages\pandas\core\arraylike.py:396: RuntimeWarning: divide by zero encountered in log
result = getattr(ufunc, method)(*inputs, **kwargs)
[8]:
SCSS_Tot | SiO2_Liq | TiO2_Liq | Al2O3_Liq | FeOt_Liq | MnO_Liq | MgO_Liq | CaO_Liq | Na2O_Liq | K2O_Liq | P2O5_Liq | H2O_Liq | Fe3Fet_Liq | Ni_Liq_ppm | Cu_Liq_ppm | SiO2_magma | TiO2_magma | Al2O3_magma | Fe2O3_magma | FeO_magma | MnO_magma | MgO_magma | CaO_magma | Na2O_magma | K2O_magma | P2O5_magma | Cr2O3_magma | Ni_magma | Cu_magma | Cr2O3_Liq | Ni_Liq | Cu_Liq | SiO2_cumulate | TiO2_cumulate | Al2O3_cumulate | Fe2O3_cumulate | FeO_cumulate | MnO_cumulate | MgO_cumulate | CaO_cumulate | Na2O_cumulate | K2O_cumulate | P2O5_cumulate | Cr2O3_cumulate | Ni_cumulate | Cu_cumulate | Temperature | Temperature_Olv | Olv_Fo_magma | Olv_Kd | Olv_Fo_cumulate | Pressure(kbar) | Lg(fO2) | dNNO | density | Ln(viscosity) | Melt_%_magma | Olv_%_magma | Olv_Peritectic | Fluid_%_magma | Olv_%_cumulate | Sample | Unnamed:58 | T_K | P_kbar | Fraction_melt | Sample_ID_Liq | Fe_FeNiCu_Sulf_calc | lnCHS_NKA_term | NaKAl | DeltaGRT | SumXMAM | lnCs | lnXFeO | LnrFeO | lnaFeS | C1PC2erf | lnS | S2_calc | lnXH2Ot | KOH | XOH | lnXOH | XH2Om | lnXH2Om | lnXOH_XH2O | lnCHScalc | HScal | NaKAlterm | HScal2 | Si_cat | Ti_cat | Al_cat | Fe_cat | Mn_cat | Mg_cat | Ca_cat | Na_cat | K_cat | P_cat | H_cat | Fe3_cat | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0 | 944.864154 | 49.9010 | 0.9981 | 14.9715 | 8.980926 | 0.0998 | 9.9763 | 11.9772 | 2.4953 | 0.1996 | 0.0998 | 0.0 | 0.098489 | 697.8 | 99.8 | 49.9010 | 0.9981 | 14.9715 | 0.9839 | 8.0964 | 0.0998 | 9.9763 | 11.9772 | 2.4953 | 0.1996 | 0.0998 | 0.0998 | 697.8 | 99.8 | 0.0998 | 697.8 | 99.8 | 40.2986 | 0 | 0 | 0 | 11.7372 | 0 | 46.9121 | 0 | 0 | 0 | 0 | 0 | 8257.6 | 10.0 | 1253.281 | 1253.281 | 87.69 | 0.308 | 87.69 | 1 | -7.72 | -0.7 | 2.683 | 6.25 | 99.9900 | 0 | N | 0 | 0.0100 | PetrologDefault | 08:21:15 | 1526.431 | 1 | 0.999900 | 0 | 0.65 | -inf | -0.115398 | 7.303803 | 4.316075 | -2.369795 | 2.776639 | -0.371351 | -0.495052 | 0.006797 | 6.851041 | 944.864154 | -inf | 0.894569 | -0.0 | -inf | 0.0 | -inf | -inf | -inf | 0.0 | -2.283851 | 0.0 | 0.458757 | 0.006902 | 0.162217 | 0.062247 | 0.000777 | 0.136726 | 0.117978 | 0.044478 | 0.002341 | 0.000777 | 0.0 | 0.006800 |
1 | 918.799931 | 49.9978 | 1.0081 | 15.1220 | 8.951296 | 0.1008 | 9.6064 | 12.0976 | 2.5203 | 0.2016 | 0.1008 | 0.0 | 0.097851 | 624.6 | 100.7 | 49.9978 | 1.0081 | 15.1220 | 0.9743 | 8.0754 | 0.1008 | 9.6064 | 12.0976 | 2.5203 | 0.2016 | 0.1008 | 0.1008 | 624.6 | 100.7 | 0.1008 | 624.6 | 100.7 | 40.2698 | 0 | 0 | 0 | 11.9273 | 0 | 46.7855 | 0 | 0 | 0 | 0 | 0 | 7984.5 | 10.0 | 1243.430 | 1243.430 | 87.28 | 0.309 | 87.49 | 1 | -7.83 | -0.7 | 2.682 | 6.38 | 98.9950 | 0 | N | 0 | 1.0050 | PetrologDefault | 08:21:15 | 1516.580 | 1 | 0.989950 | 1 | 0.65 | -inf | -0.116681 | 7.367736 | 4.328636 | -2.457638 | 2.778198 | -0.377121 | -0.494949 | 0.006841 | 6.823068 | 918.799931 | -inf | 0.886706 | -0.0 | -inf | 0.0 | -inf | -inf | -inf | 0.0 | -2.335989 | 0.0 | 0.460124 | 0.006978 | 0.164017 | 0.062150 | 0.000786 | 0.131793 | 0.119288 | 0.044970 | 0.002367 | 0.000785 | 0.0 | 0.006741 |
2 | 891.807650 | 50.0982 | 1.0185 | 15.2770 | 8.916645 | 0.1018 | 9.2279 | 12.2216 | 2.5462 | 0.2037 | 0.1018 | 0.0 | 0.097284 | 554.8 | 101.6 | 50.0982 | 1.0185 | 15.2770 | 0.9649 | 8.0492 | 0.1018 | 9.2279 | 12.2216 | 2.5462 | 0.2037 | 0.1018 | 0.1018 | 554.8 | 101.6 | 0.1018 | 554.8 | 101.6 | 40.2390 | 0 | 0 | 0 | 12.1280 | 0 | 46.6507 | 0 | 0 | 0 | 0 | 0 | 7708.8 | 10.1 | 1233.064 | 1233.064 | 86.83 | 0.310 | 87.27 | 1 | -7.94 | -0.7 | 2.681 | 6.52 | 97.9904 | 0 | N | 0 | 2.0096 | PetrologDefault | 08:21:15 | 1506.214 | 1 | 0.979904 | 2 | 0.65 | -inf | -0.118000 | 7.435962 | 4.341439 | -2.551906 | 2.780390 | -0.383281 | -0.494803 | 0.006888 | 6.793250 | 891.807650 | -inf | 0.878358 | -0.0 | -inf | 0.0 | -inf | -inf | -inf | 0.0 | -2.390696 | 0.0 | 0.461536 | 0.007058 | 0.165874 | 0.062014 | 0.000794 | 0.126734 | 0.120638 | 0.045480 | 0.002394 | 0.000794 | 0.0 | 0.006683 |
3 | 864.417345 | 50.2003 | 1.0289 | 15.4337 | 8.877334 | 0.1029 | 8.8486 | 12.3469 | 2.5723 | 0.2058 | 0.1029 | 0.0 | 0.096823 | 489.9 | 102.6 | 50.2003 | 1.0289 | 15.4337 | 0.9561 | 8.0178 | 0.1029 | 8.8486 | 12.3469 | 2.5723 | 0.2058 | 0.1029 | 0.1029 | 489.9 | 102.6 | 0.1029 | 489.9 | 102.6 | 40.2069 | 0 | 0 | 0 | 12.3359 | 0 | 46.5096 | 0 | 0 | 0 | 0 | 0 | 7436.5 | 10.1 | 1222.361 | 1222.361 | 86.36 | 0.311 | 87.05 | 1 | -8.05 | -0.7 | 2.680 | 6.67 | 96.9959 | 0 | N | 0 | 3.0041 | PetrologDefault | 08:21:15 | 1495.511 | 1 | 0.969959 | 3 | 0.65 | -inf | -0.119336 | 7.507449 | 4.354223 | -2.651232 | 2.783245 | -0.389729 | -0.494615 | 0.006938 | 6.762056 | 864.417345 | -inf | 0.869664 | -0.0 | -inf | 0.0 | -inf | -inf | -inf | 0.0 | -2.447215 | 0.0 | 0.462964 | 0.007137 | 0.167752 | 0.061838 | 0.000804 | 0.121653 | 0.122003 | 0.045995 | 0.002421 | 0.000803 | 0.0 | 0.006629 |
4 | 836.086510 | 50.3062 | 1.0397 | 15.5950 | 8.832002 | 0.1040 | 8.4612 | 12.4760 | 2.5992 | 0.2079 | 0.1040 | 0.0 | 0.096445 | 428.7 | 103.5 | 50.3062 | 1.0397 | 15.5950 | 0.9475 | 7.9802 | 0.1040 | 8.4612 | 12.4760 | 2.5992 | 0.2079 | 0.1040 | 0.1040 | 428.7 | 103.5 | 0.1040 | 428.7 | 103.5 | 40.1725 | 0 | 0 | 0 | 12.5558 | 0 | 46.3589 | 0 | 0 | 0 | 0 | 0 | 7162.8 | 10.2 | 1211.080 | 1211.080 | 85.84 | 0.312 | 86.81 | 1 | -8.18 | -0.7 | 2.679 | 6.83 | 95.9923 | 0 | N | 0 | 4.0077 | PetrologDefault | 08:21:15 | 1484.230 | 1 | 0.959923 | 4 | 0.65 | -inf | -0.120713 | 7.583970 | 4.367258 | -2.758111 | 2.786873 | -0.396613 | -0.494376 | 0.006991 | 6.728732 | 836.086510 | -inf | 0.860418 | -0.0 | -inf | 0.0 | -inf | -inf | -inf | 0.0 | -2.506736 | 0.0 | 0.464439 | 0.007220 | 0.169687 | 0.061614 | 0.000813 | 0.116452 | 0.123411 | 0.046526 | 0.002449 | 0.000813 | 0.0 | 0.006577 |
Example 1d: Using the Fortin et al. (2015) model at a fixed water content
[9]:
F2015_3H=ss.calculate_F2015_SCSS(df=df_out, T_K=df_out['T_K'],
P_kbar=df_out['P_kbar'], H2O_Liq=3)
F2015_3H.head()
[9]:
SCSS2_ppm | SiO2_Liq_mol_frac | MgO_Liq_mol_frac | MnO_Liq_mol_frac | FeOt_Liq_mol_frac | CaO_Liq_mol_frac | Al2O3_Liq_mol_frac | Na2O_Liq_mol_frac | K2O_Liq_mol_frac | TiO2_Liq_mol_frac | P2O5_Liq_mol_frac | H2O_Liq_mol_frac | Cr2O3_Liq_mol_frac | SiO2_Liq | TiO2_Liq | Al2O3_Liq | FeOt_Liq | MnO_Liq | MgO_Liq | CaO_Liq | Na2O_Liq | K2O_Liq | P2O5_Liq | H2O_Liq | Fe3Fet_Liq | Ni_Liq_ppm | Cu_Liq_ppm | SiO2_magma | TiO2_magma | Al2O3_magma | Fe2O3_magma | FeO_magma | MnO_magma | MgO_magma | CaO_magma | Na2O_magma | K2O_magma | P2O5_magma | Cr2O3_magma | Ni_magma | Cu_magma | Cr2O3_Liq | Ni_Liq | Cu_Liq | SiO2_cumulate | TiO2_cumulate | Al2O3_cumulate | Fe2O3_cumulate | FeO_cumulate | MnO_cumulate | MgO_cumulate | CaO_cumulate | Na2O_cumulate | K2O_cumulate | P2O5_cumulate | Cr2O3_cumulate | Ni_cumulate | Cu_cumulate | Temperature | Temperature_Olv | Olv_Fo_magma | Olv_Kd | Olv_Fo_cumulate | Pressure(kbar) | Lg(fO2) | dNNO | density | Ln(viscosity) | Melt_%_magma | Olv_%_magma | Olv_Peritectic | Fluid_%_magma | Olv_%_cumulate | Sample | Unnamed:58 | T_K | P_kbar | Fraction_melt | Sample_ID_Liq | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0 | 2094.796875 | 0.464555 | 0.138454 | 0.000787 | 0.069921 | 0.119469 | 0.082133 | 0.022520 | 0.001185 | 0.006989 | 0.000393 | 0.093226 | 0.000367 | 49.9010 | 0.9981 | 14.9715 | 8.980926 | 0.0998 | 9.9763 | 11.9772 | 2.4953 | 0.1996 | 0.0998 | 3 | 0.098489 | 697.8 | 99.8 | 49.9010 | 0.9981 | 14.9715 | 0.9839 | 8.0964 | 0.0998 | 9.9763 | 11.9772 | 2.4953 | 0.1996 | 0.0998 | 0.0998 | 697.8 | 99.8 | 0.0998 | 697.8 | 99.8 | 40.2986 | 0 | 0 | 0 | 11.7372 | 0 | 46.9121 | 0 | 0 | 0 | 0 | 0 | 8257.6 | 10.0 | 1253.281 | 1253.281 | 87.69 | 0.308 | 87.69 | 1 | -7.72 | -0.7 | 2.683 | 6.25 | 99.9900 | 0 | N | 0 | 0.0100 | PetrologDefault | 08:21:15 | 1526.431 | 1 | 0.999900 | 0 |
1 | 2030.706171 | 0.466442 | 0.133603 | 0.000797 | 0.069837 | 0.120926 | 0.083135 | 0.022794 | 0.001200 | 0.007074 | 0.000398 | 0.093424 | 0.000372 | 49.9978 | 1.0081 | 15.1220 | 8.951296 | 0.1008 | 9.6064 | 12.0976 | 2.5203 | 0.2016 | 0.1008 | 3 | 0.097851 | 624.6 | 100.7 | 49.9978 | 1.0081 | 15.1220 | 0.9743 | 8.0754 | 0.1008 | 9.6064 | 12.0976 | 2.5203 | 0.2016 | 0.1008 | 0.1008 | 624.6 | 100.7 | 0.1008 | 624.6 | 100.7 | 40.2698 | 0 | 0 | 0 | 11.9273 | 0 | 46.7855 | 0 | 0 | 0 | 0 | 0 | 7984.5 | 10.0 | 1243.430 | 1243.430 | 87.28 | 0.309 | 87.49 | 1 | -7.83 | -0.7 | 2.682 | 6.38 | 98.9950 | 0 | N | 0 | 1.0050 | PetrologDefault | 08:21:15 | 1516.580 | 1 | 0.989950 | 1 |
2 | 1964.563286 | 0.468395 | 0.128618 | 0.000806 | 0.069718 | 0.122431 | 0.084170 | 0.023078 | 0.001215 | 0.007163 | 0.000403 | 0.093627 | 0.000376 | 50.0982 | 1.0185 | 15.2770 | 8.916645 | 0.1018 | 9.2279 | 12.2216 | 2.5462 | 0.2037 | 0.1018 | 3 | 0.097284 | 554.8 | 101.6 | 50.0982 | 1.0185 | 15.2770 | 0.9649 | 8.0492 | 0.1018 | 9.2279 | 12.2216 | 2.5462 | 0.2037 | 0.1018 | 0.1018 | 554.8 | 101.6 | 0.1018 | 554.8 | 101.6 | 40.2390 | 0 | 0 | 0 | 12.1280 | 0 | 46.6507 | 0 | 0 | 0 | 0 | 0 | 7708.8 | 10.1 | 1233.064 | 1233.064 | 86.83 | 0.310 | 87.27 | 1 | -7.94 | -0.7 | 2.681 | 6.52 | 97.9904 | 0 | N | 0 | 2.0096 | PetrologDefault | 08:21:15 | 1506.214 | 1 | 0.979904 | 2 |
3 | 1897.743399 | 0.470376 | 0.123601 | 0.000817 | 0.069563 | 0.123957 | 0.085219 | 0.023366 | 0.001230 | 0.007252 | 0.000408 | 0.093831 | 0.000381 | 50.2003 | 1.0289 | 15.4337 | 8.877334 | 0.1029 | 8.8486 | 12.3469 | 2.5723 | 0.2058 | 0.1029 | 3 | 0.096823 | 489.9 | 102.6 | 50.2003 | 1.0289 | 15.4337 | 0.9561 | 8.0178 | 0.1029 | 8.8486 | 12.3469 | 2.5723 | 0.2058 | 0.1029 | 0.1029 | 489.9 | 102.6 | 0.1029 | 489.9 | 102.6 | 40.2069 | 0 | 0 | 0 | 12.3359 | 0 | 46.5096 | 0 | 0 | 0 | 0 | 0 | 7436.5 | 10.1 | 1222.361 | 1222.361 | 86.36 | 0.311 | 87.05 | 1 | -8.05 | -0.7 | 2.680 | 6.67 | 96.9959 | 0 | N | 0 | 3.0041 | PetrologDefault | 08:21:15 | 1495.511 | 1 | 0.969959 | 3 |
4 | 1828.862700 | 0.472425 | 0.118455 | 0.000827 | 0.069363 | 0.125534 | 0.086303 | 0.023663 | 0.001245 | 0.007344 | 0.000413 | 0.094042 | 0.000386 | 50.3062 | 1.0397 | 15.5950 | 8.832002 | 0.1040 | 8.4612 | 12.4760 | 2.5992 | 0.2079 | 0.1040 | 3 | 0.096445 | 428.7 | 103.5 | 50.3062 | 1.0397 | 15.5950 | 0.9475 | 7.9802 | 0.1040 | 8.4612 | 12.4760 | 2.5992 | 0.2079 | 0.1040 | 0.1040 | 428.7 | 103.5 | 0.1040 | 428.7 | 103.5 | 40.1725 | 0 | 0 | 0 | 12.5558 | 0 | 46.3589 | 0 | 0 | 0 | 0 | 0 | 7162.8 | 10.2 | 1211.080 | 1211.080 | 85.84 | 0.312 | 86.81 | 1 | -8.18 | -0.7 | 2.679 | 6.83 | 95.9923 | 0 | N | 0 | 4.0077 | PetrologDefault | 08:21:15 | 1484.230 | 1 | 0.959923 | 4 |
Calculate expected FC trajectory
[10]:
FC=ss.crystallize_S_incomp(S_init=1000, F_melt=df_out['Fraction_melt'])
Simple figure for paper

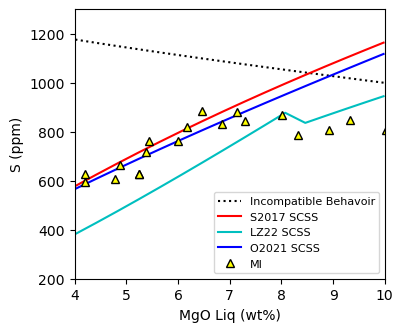

[11]:
MI_data=pd.read_excel('MI_Data.xlsx')
fig, (ax1) = plt.subplots(1, 1, figsize=(4,3.5))
ax1.plot(df_out['MgO_Liq'], FC,
':k', label='Incompatible Behavoir')
ax1.plot(Smythe_FixedSulf['MgO_Liq'],
Smythe_FixedSulf['SCSS2_ppm_ideal_Smythe2017'], '-r',
label='S2017 SCSS')
ax1.plot(LZ2022_FixedSulf['MgO_Liq'],
LZ2022_FixedSulf['SCSS_Tot'], '-c', label='LZ22 SCSS')
ax1.plot(ONeill_FixedSulf['MgO_Liq'],
ONeill_FixedSulf['SCSS2_ppm'], '-b', label='O2021 SCSS')
ax1.plot(MI_data['MgO_Liq'], MI_data['S_ppm'],
'^k', mfc='yellow', label='MI')
ax1.set_ylabel('S (ppm)')
ax1.set_xlabel('MgO Liq (wt%)')
ax1.legend(fontsize=8)
plt.xlim([4, 10])
plt.ylim([200, 1300])
fig.savefig('SCSS_Models.png', dpi=200, bbox_inches='tight')
[12]:
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(10,5))
ax1.plot(Smythe_FixedSulf['FeOt_Liq'], Smythe_FixedSulf['SCSS2_ppm_ideal_Smythe2017'],
'-r', label='S2017')
ax1.plot(LZ2022_FixedSulf['FeOt_Liq'],
LZ2022_FixedSulf['SCSS_Tot'],
'-c', label='LiZhang2022')
ax1.plot(ONeill_FixedSulf['FeOt_Liq'],
ONeill_FixedSulf['SCSS2_ppm'],
'-b', label='ONeill 2021')
ax1.set_ylabel('SCSS (ppm)')
ax1.set_xlabel('FeO$_{T}$ Liq (Wt%)')
ax2.plot(Smythe_FixedSulf['MgO_Liq'], Smythe_FixedSulf['SCSS2_ppm_ideal_Smythe2017'],
'-r')
ax2.plot(LZ2022_FixedSulf['MgO_Liq'],
LZ2022_FixedSulf['SCSS_Tot'],
'-c', label='LiZhang2022')
ax2.plot(ONeill_FixedSulf['MgO_Liq'],
ONeill_FixedSulf['SCSS2_ppm'],
'-b', label='ONeill 2021')
ax2.set_ylabel('SCSS (ppm)')
ax2.set_xlabel('MgO Liq (Wt%)')
ax1.legend()
[12]:
<matplotlib.legend.Legend at 0x24d8b144950>
Example 1e - Calculated sulfide composition
We can use the Smythe 2017 SCSS model with the Symthe or ONeill calc sulfide model
[13]:
Smythe_ONeillSulf=ss.calculate_S2017_SCSS(df=df_out, T_K=df_out['T_K'],
P_kbar=df_out['P_kbar'], Fe_FeNiCu_Sulf="Calc_ONeill",
Ni_Liq=df_out['Ni_Liq_ppm'],
Cu_Liq=df_out['Cu_Liq_ppm'],
Fe3Fet_Liq=df_out['Fe3Fet_Liq'])
Smythe_ONeillSulf.head()
no non ideal SCSS as no Cu/CuFeNiCu
[13]:
SCSS2_ppm_ideal_Smythe2017 | SCSS2_ppm_ideal_Smythe2017_1sigma | T_Input_K | P_Input_kbar | Fe_FeNiCu_Sulf | Fe3Fet_Liq_input | Si_wt_atom | Ti_wt_atom | Al_wt_atom | Mg_wt_atom | Mn_wt_atom | Fe2_wt_atom | Fe3_wt_atom | Ca_wt_atom | Na_wt_atom | K_wt_atom | P_wt_atom | H_wt_atom | Si_XA_ideal | Ti_XA_ideal | Al_XA_ideal | Mg_XA_ideal | Fe2_XA_ideal | Ca_XA_ideal | Na_XA_ideal | K_XA_ideal | H_XA_ideal | Si*Fe_ideal | Si_XA_non_ideal | Ti_XA_non_ideal | Al_XA_non_ideal | Mg_XA_non_ideal | Fe2_XA_non_ideal | Ca_XA_non_ideal | Na_XA_non_ideal | K_XA_non_ideal | H_XA_non_ideal | Si*Fe_non_ideal | log_SCSS_ideal | Fe_FeNiCu_Sulf_calc | SiO2_Liq | TiO2_Liq | Al2O3_Liq | FeOt_Liq | MnO_Liq | MgO_Liq | CaO_Liq | Na2O_Liq | K2O_Liq | P2O5_Liq | H2O_Liq | Fe3Fet_Liq | Ni_Liq_ppm | Cu_Liq_ppm | SiO2_magma | TiO2_magma | Al2O3_magma | Fe2O3_magma | FeO_magma | MnO_magma | MgO_magma | CaO_magma | Na2O_magma | K2O_magma | P2O5_magma | Cr2O3_magma | Ni_magma | Cu_magma | Cr2O3_Liq | Ni_Liq | Cu_Liq | SiO2_cumulate | TiO2_cumulate | Al2O3_cumulate | Fe2O3_cumulate | FeO_cumulate | MnO_cumulate | MgO_cumulate | CaO_cumulate | Na2O_cumulate | K2O_cumulate | P2O5_cumulate | Cr2O3_cumulate | Ni_cumulate | Cu_cumulate | Temperature | Temperature_Olv | Olv_Fo_magma | Olv_Kd | Olv_Fo_cumulate | Pressure(kbar) | Lg(fO2) | dNNO | density | Ln(viscosity) | Melt_%_magma | Olv_%_magma | Olv_Peritectic | Fluid_%_magma | Olv_%_cumulate | Sample | Unnamed:58 | T_K | P_kbar | Fraction_melt | Sample_ID_Liq | Fe_FeNiCu_Sulf_calc | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0 | 737.138239 | 201.363887 | 1526.431 | 1 | 0.411762 | 0.098489 | 0.458760 | 0.006900 | 0.162217 | 0.136728 | 0.000777 | 0.062247 | 0.006799 | 0.117975 | 0.044478 | 0.002341 | 0.000777 | 0.0 | -12643.917846 | -77.425761 | -2992.954217 | -1910.042747 | -2133.469827 | -923.846254 | -589.186980 | -67.922629 | -0.0 | 3328.767457 | -12843.656196 | -73.937634 | -3082.117373 | -1984.261077 | -2172.132780 | -1041.911444 | -609.912056 | -66.914620 | -0.0 | 3364.402871 | 6.602775 | 0.411762 | 49.9010 | 0.9981 | 14.9715 | 8.980926 | 0.0998 | 9.9763 | 11.9772 | 2.4953 | 0.1996 | 0.0998 | 0.0 | 0.098489 | 697.8 | 99.8 | 49.9010 | 0.9981 | 14.9715 | 0.9839 | 8.0964 | 0.0998 | 9.9763 | 11.9772 | 2.4953 | 0.1996 | 0.0998 | 0.0998 | 697.8 | 99.8 | 0.0998 | 697.8 | 99.8 | 40.2986 | 0 | 0 | 0 | 11.7372 | 0 | 46.9121 | 0 | 0 | 0 | 0 | 0 | 8257.6 | 10.0 | 1253.281 | 1253.281 | 87.69 | 0.308 | 87.69 | 1 | -7.72 | -0.7 | 2.683 | 6.25 | 99.9900 | 0 | N | 0 | 0.0100 | PetrologDefault | 08:21:15 | 1526.431 | 1 | 0.999900 | 0 | 0.411762 |
1 | 751.679396 | 205.336092 | 1516.580 | 1 | 0.431546 | 0.097851 | 0.460128 | 0.006977 | 0.164018 | 0.131795 | 0.000786 | 0.062150 | 0.006740 | 0.119285 | 0.044970 | 0.002367 | 0.000785 | 0.0 | -12681.596545 | -78.282676 | -3026.179002 | -1841.131776 | -2130.145227 | -934.101871 | -595.707729 | -68.674435 | -0.0 | 3333.484439 | -12881.930112 | -74.755944 | -3116.331958 | -1912.672440 | -2168.747932 | -1053.477703 | -616.662177 | -67.655269 | -0.0 | 3369.170350 | 6.622310 | 0.431546 | 49.9978 | 1.0081 | 15.1220 | 8.951296 | 0.1008 | 9.6064 | 12.0976 | 2.5203 | 0.2016 | 0.1008 | 0.0 | 0.097851 | 624.6 | 100.7 | 49.9978 | 1.0081 | 15.1220 | 0.9743 | 8.0754 | 0.1008 | 9.6064 | 12.0976 | 2.5203 | 0.2016 | 0.1008 | 0.1008 | 624.6 | 100.7 | 0.1008 | 624.6 | 100.7 | 40.2698 | 0 | 0 | 0 | 11.9273 | 0 | 46.7855 | 0 | 0 | 0 | 0 | 0 | 7984.5 | 10.0 | 1243.430 | 1243.430 | 87.28 | 0.309 | 87.49 | 1 | -7.83 | -0.7 | 2.682 | 6.38 | 98.9950 | 0 | N | 0 | 1.0050 | PetrologDefault | 08:21:15 | 1516.580 | 1 | 0.989950 | 1 | 0.431546 |
2 | 764.865429 | 208.938117 | 1506.214 | 1 | 0.452162 | 0.097284 | 0.461540 | 0.007056 | 0.165875 | 0.126736 | 0.000794 | 0.062014 | 0.006682 | 0.120635 | 0.045480 | 0.002394 | 0.000794 | 0.0 | -12720.511949 | -79.173986 | -3060.433090 | -1770.461624 | -2125.481450 | -944.675207 | -602.466551 | -69.463239 | -0.0 | 3336.392958 | -12921.460271 | -75.607099 | -3151.606511 | -1839.256265 | -2163.999637 | -1065.402284 | -623.658745 | -68.432367 | -0.0 | 3372.110005 | 6.639700 | 0.452162 | 50.0982 | 1.0185 | 15.2770 | 8.916645 | 0.1018 | 9.2279 | 12.2216 | 2.5462 | 0.2037 | 0.1018 | 0.0 | 0.097284 | 554.8 | 101.6 | 50.0982 | 1.0185 | 15.2770 | 0.9649 | 8.0492 | 0.1018 | 9.2279 | 12.2216 | 2.5462 | 0.2037 | 0.1018 | 0.1018 | 554.8 | 101.6 | 0.1018 | 554.8 | 101.6 | 40.2390 | 0 | 0 | 0 | 12.1280 | 0 | 46.6507 | 0 | 0 | 0 | 0 | 0 | 7708.8 | 10.1 | 1233.064 | 1233.064 | 86.83 | 0.310 | 87.27 | 1 | -7.94 | -0.7 | 2.681 | 6.52 | 97.9904 | 0 | N | 0 | 2.0096 | PetrologDefault | 08:21:15 | 1506.214 | 1 | 0.979904 | 2 | 0.452162 |
3 | 775.897941 | 211.951866 | 1495.511 | 1 | 0.472985 | 0.096823 | 0.462968 | 0.007136 | 0.167753 | 0.121655 | 0.000804 | 0.061837 | 0.006628 | 0.122000 | 0.045995 | 0.002421 | 0.000803 | 0.0 | -12759.875643 | -80.066770 | -3095.084610 | -1699.479235 | -2119.422207 | -955.366577 | -609.283904 | -70.253349 | -0.0 | 3337.176747 | -12961.445800 | -76.459662 | -3187.290335 | -1765.515721 | -2157.830588 | -1077.459984 | -630.715903 | -69.210751 | -0.0 | 3372.902185 | 6.654021 | 0.472985 | 50.2003 | 1.0289 | 15.4337 | 8.877334 | 0.1029 | 8.8486 | 12.3469 | 2.5723 | 0.2058 | 0.1029 | 0.0 | 0.096823 | 489.9 | 102.6 | 50.2003 | 1.0289 | 15.4337 | 0.9561 | 8.0178 | 0.1029 | 8.8486 | 12.3469 | 2.5723 | 0.2058 | 0.1029 | 0.1029 | 489.9 | 102.6 | 0.1029 | 489.9 | 102.6 | 40.2069 | 0 | 0 | 0 | 12.3359 | 0 | 46.5096 | 0 | 0 | 0 | 0 | 0 | 7436.5 | 10.1 | 1222.361 | 1222.361 | 86.36 | 0.311 | 87.05 | 1 | -8.05 | -0.7 | 2.680 | 6.67 | 96.9959 | 0 | N | 0 | 3.0041 | PetrologDefault | 08:21:15 | 1495.511 | 1 | 0.969959 | 3 | 0.472985 |
4 | 784.772165 | 214.376036 | 1484.230 | 1 | 0.494412 | 0.096445 | 0.464443 | 0.007218 | 0.169688 | 0.116454 | 0.000813 | 0.061613 | 0.006575 | 0.123408 | 0.046526 | 0.002449 | 0.000813 | 0.0 | -12800.521565 | -80.994067 | -3130.789539 | -1626.819177 | -2111.747851 | -966.392392 | -616.316520 | -71.046416 | -0.0 | 3335.684853 | -13002.733814 | -77.345183 | -3224.058949 | -1690.032319 | -2150.017156 | -1089.894870 | -637.995897 | -69.992049 | -0.0 | 3371.394320 | 6.665393 | 0.494412 | 50.3062 | 1.0397 | 15.5950 | 8.832002 | 0.1040 | 8.4612 | 12.4760 | 2.5992 | 0.2079 | 0.1040 | 0.0 | 0.096445 | 428.7 | 103.5 | 50.3062 | 1.0397 | 15.5950 | 0.9475 | 7.9802 | 0.1040 | 8.4612 | 12.4760 | 2.5992 | 0.2079 | 0.1040 | 0.1040 | 428.7 | 103.5 | 0.1040 | 428.7 | 103.5 | 40.1725 | 0 | 0 | 0 | 12.5558 | 0 | 46.3589 | 0 | 0 | 0 | 0 | 0 | 7162.8 | 10.2 | 1211.080 | 1211.080 | 85.84 | 0.312 | 86.81 | 1 | -8.18 | -0.7 | 2.679 | 6.83 | 95.9923 | 0 | N | 0 | 4.0077 | PetrologDefault | 08:21:15 | 1484.230 | 1 | 0.959923 | 4 | 0.494412 |
[14]:
Smythe_SmytheSulf=ss.calculate_S2017_SCSS(df=df_out, T_K=df_out['T_K'],
P_kbar=df_out['P_kbar'], Fe_FeNiCu_Sulf="Calc_Smythe", Ni_Liq=df_out['Ni_Liq_ppm'],
Cu_Liq=df_out['Cu_Liq_ppm'], Fe3Fet_Liq=df_out['Fe3Fet_Liq'])
Smythe_SmytheSulf.head()
[14]:
SCSS2_ppm_ideal_Smythe2017 | SCSS2_ppm_ideal_Smythe2017_1sigma | SCSS2_ppm_non_ideal_Smythe2017 | SCSS2_ppm_non_ideal_Smythe2017_1sigma | T_Input_K | P_Input_kbar | Fe_FeNiCu_Sulf | Fe3Fet_Liq_input | Si_wt_atom | Ti_wt_atom | Al_wt_atom | Mg_wt_atom | Mn_wt_atom | Fe2_wt_atom | Fe3_wt_atom | Ca_wt_atom | Na_wt_atom | K_wt_atom | P_wt_atom | H_wt_atom | Si_XA_ideal | Ti_XA_ideal | Al_XA_ideal | Mg_XA_ideal | Fe2_XA_ideal | Ca_XA_ideal | Na_XA_ideal | K_XA_ideal | H_XA_ideal | Si*Fe_ideal | Si_XA_non_ideal | Ti_XA_non_ideal | Al_XA_non_ideal | Mg_XA_non_ideal | Fe2_XA_non_ideal | Ca_XA_non_ideal | Na_XA_non_ideal | K_XA_non_ideal | H_XA_non_ideal | Si*Fe_non_ideal | log_SCSS_ideal | log_SCSS_non_ideal | Fe_FeNiCu_Sulf_calc | SiO2_Liq | TiO2_Liq | Al2O3_Liq | FeOt_Liq | MnO_Liq | MgO_Liq | CaO_Liq | Na2O_Liq | K2O_Liq | P2O5_Liq | H2O_Liq | Fe3Fet_Liq | Ni_Liq_ppm | Cu_Liq_ppm | SiO2_magma | TiO2_magma | Al2O3_magma | Fe2O3_magma | FeO_magma | MnO_magma | MgO_magma | CaO_magma | Na2O_magma | K2O_magma | P2O5_magma | Cr2O3_magma | Ni_magma | Cu_magma | Cr2O3_Liq | Ni_Liq | Cu_Liq | SiO2_cumulate | TiO2_cumulate | Al2O3_cumulate | Fe2O3_cumulate | FeO_cumulate | MnO_cumulate | MgO_cumulate | CaO_cumulate | Na2O_cumulate | K2O_cumulate | P2O5_cumulate | Cr2O3_cumulate | Ni_cumulate | Cu_cumulate | Temperature | Temperature_Olv | Olv_Fo_magma | Olv_Kd | Olv_Fo_cumulate | Pressure(kbar) | Lg(fO2) | dNNO | density | Ln(viscosity) | Melt_%_magma | Olv_%_magma | Olv_Peritectic | Fluid_%_magma | Olv_%_cumulate | Sample | Unnamed:58 | T_K | P_kbar | Fraction_melt | Sample_ID_Liq | Ni_Sulf_Calc | Cu_Sulf_Calc | Fe_Sulf_Calc | O_Sulf_Calc | S_Sulf_Calc | DCu | DNi | Fe_FeNiCu_Sulf_calc | Cu_FeNiCu_Sulf_calc | Ni_FeNiCu_Sulf_calc | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0 | 404.163237 | 110.405181 | 416.652720 | 111.370889 | 1526.431 | 1 | 0.225764 | 0.098489 | 0.458760 | 0.006900 | 0.162217 | 0.136728 | 0.000777 | 0.062247 | 0.006799 | 0.117975 | 0.044478 | 0.002341 | 0.000777 | 0.0 | -12643.917846 | -77.425761 | -2992.954217 | -1910.042747 | -2133.469827 | -923.846254 | -589.186980 | -67.922629 | -0.0 | 3328.767457 | -12843.656196 | -73.937634 | -3082.117373 | -1984.261077 | -2172.132780 | -1041.911444 | -609.912056 | -66.914620 | -0.0 | 3364.402871 | 6.001819 | 6.032253 | 0.225764 | 49.9010 | 0.9981 | 14.9715 | 8.980926 | 0.0998 | 9.9763 | 11.9772 | 2.4953 | 0.1996 | 0.0998 | 0.0 | 0.098489 | 697.8 | 99.8 | 49.9010 | 0.9981 | 14.9715 | 0.9839 | 8.0964 | 0.0998 | 9.9763 | 11.9772 | 2.4953 | 0.1996 | 0.0998 | 0.0998 | 697.8 | 99.8 | 0.0998 | 697.8 | 99.8 | 40.2986 | 0 | 0 | 0 | 11.7372 | 0 | 46.9121 | 0 | 0 | 0 | 0 | 0 | 8257.6 | 10.0 | 1253.281 | 1253.281 | 87.69 | 0.308 | 87.69 | 1 | -7.72 | -0.7 | 2.683 | 6.25 | 99.9900 | 0 | N | 0 | 0.0100 | PetrologDefault | 08:21:15 | 1526.431 | 1 | 0.999900 | 0 | 30.0 | 24.842866 | 14.689696 | 0.617110 | 29.850328 | 695.202539 | 530.599060 | 0.225764 | 0.335540 | 0.438696 |
1 | 426.633338 | 116.543333 | 435.666026 | 116.453129 | 1516.580 | 1 | 0.244934 | 0.097851 | 0.460128 | 0.006977 | 0.164018 | 0.131795 | 0.000786 | 0.062150 | 0.006740 | 0.119285 | 0.044970 | 0.002367 | 0.000785 | 0.0 | -12681.596545 | -78.282676 | -3026.179002 | -1841.131776 | -2130.145227 | -934.101871 | -595.707729 | -68.674435 | -0.0 | 3333.484439 | -12881.930112 | -74.755944 | -3116.331958 | -1912.672440 | -2168.747932 | -1053.477703 | -616.662177 | -67.655269 | -0.0 | 3369.170350 | 6.055925 | 6.076876 | 0.244934 | 49.9978 | 1.0081 | 15.1220 | 8.951296 | 0.1008 | 9.6064 | 12.0976 | 2.5203 | 0.2016 | 0.1008 | 0.0 | 0.097851 | 624.6 | 100.7 | 49.9978 | 1.0081 | 15.1220 | 0.9743 | 8.0754 | 0.1008 | 9.6064 | 12.0976 | 2.5203 | 0.2016 | 0.1008 | 0.1008 | 624.6 | 100.7 | 0.1008 | 624.6 | 100.7 | 40.2698 | 0 | 0 | 0 | 11.9273 | 0 | 46.7855 | 0 | 0 | 0 | 0 | 0 | 7984.5 | 10.0 | 1243.430 | 1243.430 | 87.28 | 0.309 | 87.49 | 1 | -7.83 | -0.7 | 2.682 | 6.38 | 98.9950 | 0 | N | 0 | 1.0050 | PetrologDefault | 08:21:15 | 1516.580 | 1 | 0.989950 | 1 | 30.0 | 23.312084 | 15.905289 | 0.613639 | 30.168987 | 732.559209 | 599.270479 | 0.244934 | 0.315494 | 0.439572 |
2 | 450.330338 | 123.016637 | 455.176828 | 121.668348 | 1506.214 | 1 | 0.266219 | 0.097284 | 0.461540 | 0.007056 | 0.165875 | 0.126736 | 0.000794 | 0.062014 | 0.006682 | 0.120635 | 0.045480 | 0.002394 | 0.000794 | 0.0 | -12720.511949 | -79.173986 | -3060.433090 | -1770.461624 | -2125.481450 | -944.675207 | -602.466551 | -69.463239 | -0.0 | 3336.392958 | -12921.460271 | -75.607099 | -3151.606511 | -1839.256265 | -2163.999637 | -1065.402284 | -623.658745 | -68.432367 | -0.0 | 3372.110005 | 6.109981 | 6.120686 | 0.266219 | 50.0982 | 1.0185 | 15.2770 | 8.916645 | 0.1018 | 9.2279 | 12.2216 | 2.5462 | 0.2037 | 0.1018 | 0.0 | 0.097284 | 554.8 | 101.6 | 50.0982 | 1.0185 | 15.2770 | 0.9649 | 8.0492 | 0.1018 | 9.2279 | 12.2216 | 2.5462 | 0.2037 | 0.1018 | 0.1018 | 554.8 | 101.6 | 0.1018 | 554.8 | 101.6 | 40.2390 | 0 | 0 | 0 | 12.1280 | 0 | 46.6507 | 0 | 0 | 0 | 0 | 0 | 7708.8 | 10.1 | 1233.064 | 1233.064 | 86.83 | 0.310 | 87.27 | 1 | -7.94 | -0.7 | 2.681 | 6.52 | 97.9904 | 0 | N | 0 | 2.0096 | PetrologDefault | 08:21:15 | 1506.214 | 1 | 0.979904 | 2 | 30.0 | 21.619458 | 17.249266 | 0.609589 | 30.521686 | 772.808320 | 680.273690 | 0.266219 | 0.293235 | 0.440546 |
3 | 473.272121 | 129.283639 | 473.374878 | 126.532670 | 1495.511 | 1 | 0.288505 | 0.096823 | 0.462968 | 0.007136 | 0.167753 | 0.121655 | 0.000804 | 0.061837 | 0.006628 | 0.122000 | 0.045995 | 0.002421 | 0.000803 | 0.0 | -12759.875643 | -80.066770 | -3095.084610 | -1699.479235 | -2119.422207 | -955.366577 | -609.283904 | -70.253349 | -0.0 | 3337.176747 | -12961.445800 | -76.459662 | -3187.290335 | -1765.515721 | -2157.830588 | -1077.459984 | -630.715903 | -69.210751 | -0.0 | 3372.902185 | 6.159671 | 6.159888 | 0.288505 | 50.2003 | 1.0289 | 15.4337 | 8.877334 | 0.1029 | 8.8486 | 12.3469 | 2.5723 | 0.2058 | 0.1029 | 0.0 | 0.096823 | 489.9 | 102.6 | 50.2003 | 1.0289 | 15.4337 | 0.9561 | 8.0178 | 0.1029 | 8.8486 | 12.3469 | 2.5723 | 0.2058 | 0.1029 | 0.1029 | 489.9 | 102.6 | 0.1029 | 489.9 | 102.6 | 40.2069 | 0 | 0 | 0 | 12.3359 | 0 | 46.5096 | 0 | 0 | 0 | 0 | 0 | 7436.5 | 10.1 | 1222.361 | 1222.361 | 86.36 | 0.311 | 87.05 | 1 | -8.05 | -0.7 | 2.680 | 6.67 | 96.9959 | 0 | N | 0 | 3.0041 | PetrologDefault | 08:21:15 | 1495.511 | 1 | 0.969959 | 3 | 30.0 | 19.855116 | 18.650002 | 0.605077 | 30.889805 | 815.325100 | 771.950059 | 0.288505 | 0.269928 | 0.441567 |
4 | 493.960136 | 134.934979 | 488.892399 | 130.680489 | 1484.230 | 1 | 0.311198 | 0.096445 | 0.464443 | 0.007218 | 0.169688 | 0.116454 | 0.000813 | 0.061613 | 0.006575 | 0.123408 | 0.046526 | 0.002449 | 0.000813 | 0.0 | -12800.521565 | -80.994067 | -3130.789539 | -1626.819177 | -2111.747851 | -966.392392 | -616.316520 | -71.046416 | -0.0 | 3335.684853 | -13002.733814 | -77.345183 | -3224.058949 | -1690.032319 | -2150.017156 | -1089.894870 | -637.995897 | -69.992049 | -0.0 | 3371.394320 | 6.202455 | 6.192142 | 0.311198 | 50.3062 | 1.0397 | 15.5950 | 8.832002 | 0.1040 | 8.4612 | 12.4760 | 2.5992 | 0.2079 | 0.1040 | 0.0 | 0.096445 | 428.7 | 103.5 | 50.3062 | 1.0397 | 15.5950 | 0.9475 | 7.9802 | 0.1040 | 8.4612 | 12.4760 | 2.5992 | 0.2079 | 0.1040 | 0.1040 | 428.7 | 103.5 | 0.1040 | 428.7 | 103.5 | 40.1725 | 0 | 0 | 0 | 12.5558 | 0 | 46.3589 | 0 | 0 | 0 | 0 | 0 | 7162.8 | 10.2 | 1211.080 | 1211.080 | 85.84 | 0.312 | 86.81 | 1 | -8.18 | -0.7 | 2.679 | 6.83 | 95.9923 | 0 | N | 0 | 4.0077 | PetrologDefault | 08:21:15 | 1484.230 | 1 | 0.959923 | 4 | 30.0 | 18.066651 | 20.069628 | 0.600093 | 31.263628 | 861.422428 | 875.097626 | 0.311198 | 0.246194 | 0.442608 |
[15]:

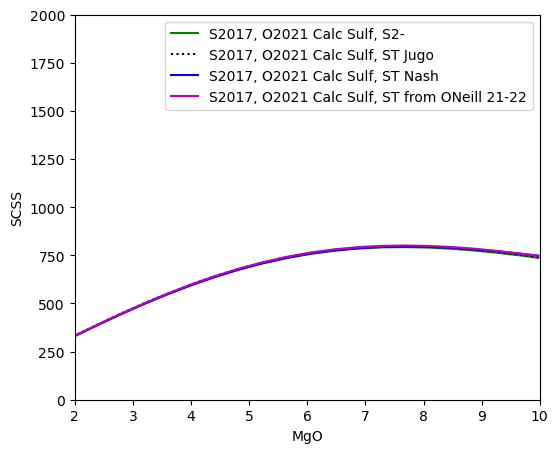

fig, (ax1, ax2, ax3) = plt.subplots(1, 3, figsize=(12,4))
ax1.plot(Smythe_ONeillSulf['FeOt_Liq'], Smythe_ONeillSulf['SCSS2_ppm_ideal_Smythe2017'],
'-g', label='S2017, O2021 Calc Sulf')
ax1.plot(Smythe_SmytheSulf['FeOt_Liq'],
Smythe_SmytheSulf['SCSS2_ppm_ideal_Smythe2017'],
'-m', label='S2017, S2017 Calc Sulf')
ax1.set_ylabel('SCSS (ppm)')
ax1.set_xlabel('FeO$_{T}$ Liq (Wt%)')
ax2.plot(Smythe_ONeillSulf['MgO_Liq'], Smythe_ONeillSulf['SCSS2_ppm_ideal_Smythe2017'],
'-g')
ax2.plot(Smythe_SmytheSulf['MgO_Liq'],
Smythe_SmytheSulf['SCSS2_ppm_ideal_Smythe2017'],
'-m', label='S2017, S2017 Calc Sulf')
ax2.set_ylabel('SCSS (ppm)')
ax2.set_xlabel('MgO Liq (Wt%)')
ax1.legend()
ax3.plot(Smythe_SmytheSulf['MgO_Liq'],
Smythe_SmytheSulf['Fe_FeNiCu_Sulf'],
'-m')
ax3.plot(Smythe_ONeillSulf['MgO_Liq'],
Smythe_ONeillSulf['Fe_FeNiCu_Sulf'],
'-g')
ax3.plot([0, 10], [0.65, 0.65], '-r', label='Av Meas Sulf')
ax3.legend()
ax3.set_ylabel('Fe/(Fe+Ni+Cu) Sulf')
ax3.set_xlabel('MgO Liq (wt%)')
fig.tight_layout()
Example 2: SCAS models
This petrolog model is for Hawaii, so it is unlikely you would ever want to calculate SCAS, but just incase, we show how to do it here!
[16]:
CD19_SCAS=ss.calculate_CD2019_SCAS(df=df_out, T_K=df_out['T_K'])
ZT22_SCAS=ss.calculate_ZT2022_SCAS(df=df_out, T_K=df_out['T_K'])
[17]:
CD19_SCAS.head()
[17]:
SCAS6_ppm | lnXS | Xs | molesS | SiO2_Liq | TiO2_Liq | Al2O3_Liq | FeOt_Liq | MnO_Liq | MgO_Liq | CaO_Liq | Na2O_Liq | K2O_Liq | P2O5_Liq | H2O_Liq | Fe3Fet_Liq | Ni_Liq_ppm | Cu_Liq_ppm | SiO2_magma | TiO2_magma | Al2O3_magma | Fe2O3_magma | FeO_magma | MnO_magma | MgO_magma | CaO_magma | Na2O_magma | K2O_magma | P2O5_magma | Cr2O3_magma | Ni_magma | Cu_magma | Cr2O3_Liq | Ni_Liq | Cu_Liq | SiO2_cumulate | TiO2_cumulate | Al2O3_cumulate | Fe2O3_cumulate | FeO_cumulate | MnO_cumulate | MgO_cumulate | CaO_cumulate | Na2O_cumulate | K2O_cumulate | P2O5_cumulate | Cr2O3_cumulate | Ni_cumulate | Cu_cumulate | Temperature | Temperature_Olv | Olv_Fo_magma | Olv_Kd | Olv_Fo_cumulate | Pressure(kbar) | Lg(fO2) | dNNO | density | Ln(viscosity) | Melt_%_magma | Olv_%_magma | Olv_Peritectic | Fluid_%_magma | Olv_%_cumulate | Sample | Unnamed:58 | T_K | P_kbar | Fraction_melt | Sample_ID_Liq | SiO2_Liq_mol_prop | MgO_Liq_mol_prop | MnO_Liq_mol_prop | FeOt_Liq_mol_prop | CaO_Liq_mol_prop | Al2O3_Liq_mol_prop | Na2O_Liq_mol_prop | K2O_Liq_mol_prop | TiO2_Liq_mol_prop | P2O5_Liq_mol_prop | H2O_Liq_mol_prop | Cr2O3_Liq_mol_prop | SiO2_Liq_mol_frac | MgO_Liq_mol_frac | MnO_Liq_mol_frac | FeOt_Liq_mol_frac | CaO_Liq_mol_frac | Al2O3_Liq_mol_frac | Na2O_Liq_mol_frac | K2O_Liq_mol_frac | TiO2_Liq_mol_frac | P2O5_Liq_mol_frac | H2O_Liq_mol_frac | Cr2O3_Liq_mol_frac | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0 | 22381.770953 | -3.173787 | 0.041845 | 0.069801 | 49.9010 | 0.9981 | 14.9715 | 8.980926 | 0.0998 | 9.9763 | 11.9772 | 2.4953 | 0.1996 | 0.0998 | 0.0 | 0.098489 | 697.8 | 99.8 | 49.9010 | 0.9981 | 14.9715 | 0.9839 | 8.0964 | 0.0998 | 9.9763 | 11.9772 | 2.4953 | 0.1996 | 0.0998 | 0.0998 | 697.8 | 99.8 | 0.0998 | 697.8 | 99.8 | 40.2986 | 0 | 0 | 0 | 11.7372 | 0 | 46.9121 | 0 | 0 | 0 | 0 | 0 | 8257.6 | 10.0 | 1253.281 | 1253.281 | 87.69 | 0.308 | 87.69 | 1 | -7.72 | -0.7 | 2.683 | 6.25 | 99.9900 | 0 | N | 0 | 0.0100 | PetrologDefault | 08:21:15 | 1526.431 | 1 | 0.999900 | 0 | 0.833854 | 0.248519 | 0.001413 | 0.125504 | 0.214442 | 0.147426 | 0.040422 | 0.002128 | 0.012545 | 0.0 | 0.0 | 0.0 | 0.512746 | 0.152817 | 0.000869 | 0.077174 | 0.131863 | 0.090654 | 0.024856 | 0.001308 | 0.007714 | 0.0 | 0.0 | 0.0 |
1 | 24252.043336 | -3.093293 | 0.045352 | 0.075634 | 49.9978 | 1.0081 | 15.1220 | 8.951296 | 0.1008 | 9.6064 | 12.0976 | 2.5203 | 0.2016 | 0.1008 | 0.0 | 0.097851 | 624.6 | 100.7 | 49.9978 | 1.0081 | 15.1220 | 0.9743 | 8.0754 | 0.1008 | 9.6064 | 12.0976 | 2.5203 | 0.2016 | 0.1008 | 0.1008 | 624.6 | 100.7 | 0.1008 | 624.6 | 100.7 | 40.2698 | 0 | 0 | 0 | 11.9273 | 0 | 46.7855 | 0 | 0 | 0 | 0 | 0 | 7984.5 | 10.0 | 1243.430 | 1243.430 | 87.28 | 0.309 | 87.49 | 1 | -7.83 | -0.7 | 2.682 | 6.38 | 98.9950 | 0 | N | 0 | 1.0050 | PetrologDefault | 08:21:15 | 1516.580 | 1 | 0.989950 | 1 | 0.835420 | 0.239289 | 0.001427 | 0.125082 | 0.216584 | 0.148898 | 0.040825 | 0.002149 | 0.012670 | 0.0 | 0.0 | 0.0 | 0.514946 | 0.147496 | 0.000879 | 0.077100 | 0.133501 | 0.091780 | 0.025164 | 0.001324 | 0.007810 | 0.0 | 0.0 | 0.0 |
2 | 26332.709650 | -3.010922 | 0.049246 | 0.082123 | 50.0982 | 1.0185 | 15.2770 | 8.916645 | 0.1018 | 9.2279 | 12.2216 | 2.5462 | 0.2037 | 0.1018 | 0.0 | 0.097284 | 554.8 | 101.6 | 50.0982 | 1.0185 | 15.2770 | 0.9649 | 8.0492 | 0.1018 | 9.2279 | 12.2216 | 2.5462 | 0.2037 | 0.1018 | 0.1018 | 554.8 | 101.6 | 0.1018 | 554.8 | 101.6 | 40.2390 | 0 | 0 | 0 | 12.1280 | 0 | 46.6507 | 0 | 0 | 0 | 0 | 0 | 7708.8 | 10.1 | 1233.064 | 1233.064 | 86.83 | 0.310 | 87.27 | 1 | -7.94 | -0.7 | 2.681 | 6.52 | 97.9904 | 0 | N | 0 | 2.0096 | PetrologDefault | 08:21:15 | 1506.214 | 1 | 0.979904 | 2 | 0.837050 | 0.229848 | 0.001441 | 0.124591 | 0.218792 | 0.150416 | 0.041242 | 0.002171 | 0.012800 | 0.0 | 0.0 | 0.0 | 0.517224 | 0.142026 | 0.000890 | 0.076986 | 0.135194 | 0.092944 | 0.025484 | 0.001341 | 0.007909 | 0.0 | 0.0 | 0.0 |
3 | 28603.678810 | -2.928343 | 0.053486 | 0.089205 | 50.2003 | 1.0289 | 15.4337 | 8.877334 | 0.1029 | 8.8486 | 12.3469 | 2.5723 | 0.2058 | 0.1029 | 0.0 | 0.096823 | 489.9 | 102.6 | 50.2003 | 1.0289 | 15.4337 | 0.9561 | 8.0178 | 0.1029 | 8.8486 | 12.3469 | 2.5723 | 0.2058 | 0.1029 | 0.1029 | 489.9 | 102.6 | 0.1029 | 489.9 | 102.6 | 40.2069 | 0 | 0 | 0 | 12.3359 | 0 | 46.5096 | 0 | 0 | 0 | 0 | 0 | 7436.5 | 10.1 | 1222.361 | 1222.361 | 86.36 | 0.311 | 87.05 | 1 | -8.05 | -0.7 | 2.680 | 6.67 | 96.9959 | 0 | N | 0 | 3.0041 | PetrologDefault | 08:21:15 | 1495.511 | 1 | 0.969959 | 3 | 0.838712 | 0.220389 | 0.001456 | 0.124035 | 0.221023 | 0.151951 | 0.041663 | 0.002193 | 0.012930 | 0.0 | 0.0 | 0.0 | 0.519535 | 0.136518 | 0.000902 | 0.076833 | 0.136911 | 0.094125 | 0.025808 | 0.001359 | 0.008010 | 0.0 | 0.0 | 0.0 |
4 | 31130.910816 | -2.844053 | 0.058189 | 0.097087 | 50.3062 | 1.0397 | 15.5950 | 8.832002 | 0.1040 | 8.4612 | 12.4760 | 2.5992 | 0.2079 | 0.1040 | 0.0 | 0.096445 | 428.7 | 103.5 | 50.3062 | 1.0397 | 15.5950 | 0.9475 | 7.9802 | 0.1040 | 8.4612 | 12.4760 | 2.5992 | 0.2079 | 0.1040 | 0.1040 | 428.7 | 103.5 | 0.1040 | 428.7 | 103.5 | 40.1725 | 0 | 0 | 0 | 12.5558 | 0 | 46.3589 | 0 | 0 | 0 | 0 | 0 | 7162.8 | 10.2 | 1211.080 | 1211.080 | 85.84 | 0.312 | 86.81 | 1 | -8.18 | -0.7 | 2.679 | 6.83 | 95.9923 | 0 | N | 0 | 4.0077 | PetrologDefault | 08:21:15 | 1484.230 | 1 | 0.959923 | 4 | 0.840444 | 0.210731 | 0.001472 | 0.123396 | 0.223324 | 0.153532 | 0.042096 | 0.002215 | 0.013065 | 0.0 | 0.0 | 0.0 | 0.521925 | 0.130866 | 0.000914 | 0.076631 | 0.138687 | 0.095345 | 0.026142 | 0.001376 | 0.008114 | 0.0 | 0.0 | 0.0 |
[18]:
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(10,5), sharey=True)
ax1.plot(CD19_SCAS['FeOt_Liq'], CD19_SCAS['SCAS6_ppm']/10000, '-r', label='CD19')
ax2.plot(CD19_SCAS['MgO_Liq'], CD19_SCAS['SCAS6_ppm']/10000, '-r', label='CD19')
ax1.plot(ZT22_SCAS['FeOt_Liq'], ZT22_SCAS['SCAS6_ppm']/10000, '-b', label='CD19')
ax2.plot(ZT22_SCAS['MgO_Liq'], ZT22_SCAS['SCAS6_ppm']/10000, '-b', label='CD19')
ax1.set_xlabel('FeOt Liq (Wt%)')
ax2.set_xlabel('MgO Liq (Wt%)')
ax1.set_ylabel('SCAS (wt%)')
[18]:
Text(0, 0.5, 'SCAS (wt%)')
[19]:
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(10,5), sharey=True)
ax1.plot(ZT22_SCAS['FeOt_Liq'], ZT22_SCAS['SCAS6_ppm'], '-b', label='CD19')
ax2.plot(ZT22_SCAS['MgO_Liq'], ZT22_SCAS['SCAS6_ppm'], '-b', label='CD19')
ax1.set_xlabel('FeOt Liq (Wt%)')
ax2.set_xlabel('MgO Liq (Wt%)')
ax1.set_ylabel('SCAS (wt%)')
[19]:
Text(0, 0.5, 'SCAS (wt%)')
Example 3 - Calculating amount of sulfide which has formed
[20]:
# Select inital S content, from other knowledge of the system, highest S melt inclusion etc.
S_init=1600
# Amount of S in the sulfide
S_sulf=32*10**4
# Which SCSS model you have choosen
S_model=ONeill_FixedSulf['SCSS2_ppm']
[21]:
Mass_Frac_S=ss.calculate_mass_frac_sulf(F_melt=df_out['Fraction_melt'],
S_init=S_init, S_sulf=S_sulf, S_model=S_model)
Mass_Frac_S.head()
[21]:
0 0.001508
1 0.001641
2 0.001775
3 0.001908
4 0.002042
dtype: float64
[22]:

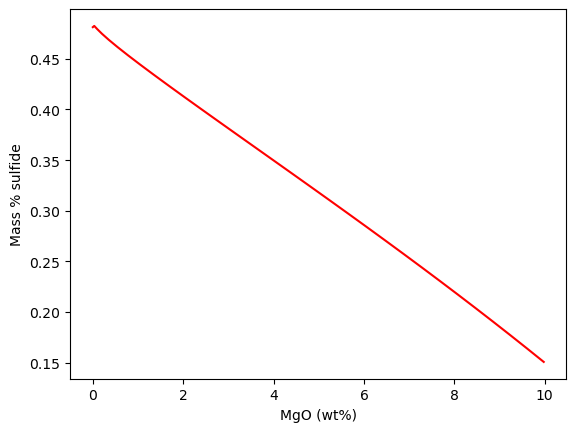

plt.plot(df_out['MgO_Liq'], 100*Mass_Frac_S, '-r')
plt.xlabel('MgO (wt%)')
plt.ylabel('Mass % sulfide')
[22]:
Text(0, 0.5, 'Mass % sulfide')
Example 4 - S6 Corrections
In reality, we may have some S6+ in our samples. We can use the Nash and Jugo models to try to account for this, based on our Fe3Fet_Liq ratios from Petrolog, or S6+ proportions measured by methods such as XANES
We can also use the sulfide and sulfate capacity model of ONeill and Mavrogenes (2022) and ONeill (2021)
First, we use the python package Thermobar (Wieser et al. 2022) to convert our measured Fe3 proportion into a buffer position (needed for Jugo)
You will need to pip install Thermobar if it is not already installed
[23]:
#!pip install Thermobar
[24]:
import Thermobar as pt
pt.__version__
[24]:
'1.0.30'
This function converts from a logfo2 value into QFM and NNO buffer positions
Petrolog actually uses a slightly different buffer position to Frost (1991), which is used in the Jugo et al. (2010) parameterization
If you want to use the Oneill (2022) model, that uses a different QFM position again.
[25]:
Buffer_calc=pt.convert_fo2_to_buffer(fo2=10**df_out['Lg(fO2)'],
T_K=df_out['T_K'], P_kbar=df_out['P_kbar'])
Buffer_calc.head()
[25]:
DeltaNNO_Frost1991 | DeltaQFM_Frost1991 | QFM_equation_Choice | T_K | P_kbar | fo2 | DeltaQFM_ONeill1987 | Cut off T (K) | |
---|---|---|---|---|---|---|---|---|
0 | -0.777890 | -0.085829 | High T | 1526.431 | 1 | 1.905461e-08 | 0.110830 | 871.15 |
1 | -0.781999 | -0.089502 | High T | 1516.580 | 1 | 1.479108e-08 | 0.107427 | 871.15 |
2 | -0.779077 | -0.086116 | High T | 1506.214 | 1 | 1.148154e-08 | 0.111103 | 871.15 |
3 | -0.770841 | -0.077393 | High T | 1495.511 | 1 | 8.912509e-09 | 0.120128 | 871.15 |
4 | -0.774373 | -0.080406 | High T | 1484.230 | 1 | 6.606934e-09 | 0.117438 | 871.15 |
Using Jugo
To use Jugo, you need to make sure the QFM buffer is relative to frost.
[26]:
Jugo_Frost_S6=ss.calculate_S6St_Jugo2010_eq10(deltaQFM=Buffer_calc['DeltaQFM_Frost1991'])
Using Nash
Here lets use the Petrolog Fe3FeT ratio. This is uncertain, if you selected Kress and Carmichael, you would get a different ratio, so different S6+ proportions.
[27]:
Nash_S6=ss.calculate_S6St_Nash2019(T_K=df_out['T_K'], Fe3Fet_Liq=df_out['Fe3Fet_Liq'])
Nash_S6.head()
[27]:
0 0.015050
1 0.012156
2 0.009777
3 0.007880
4 0.006324
dtype: float64
Lets use the ONeill method
ONeill and Mavrogenes (2022) have a method using the sulfate and sulfide carrying capacity
But, this uses a different position for the QFM buffer as Frost and Petrolog, can either enter the logfo2 value, or the position of the ONeill buffer we calculated above
[28]:
S6_ONeill=ss.calculate_OM2022_S6St(df=df_out,
T_K=df_out['T_K'], logfo2=df_out['Lg(fO2)'])
S6_ONeill.head()
[28]:
S6St_Liq | LnCS2_calc | LnCS6_calc | LnKSO2S2 | LnS6S2 | deltaQFM_calc | SiO2_Liq | TiO2_Liq | Al2O3_Liq | FeOt_Liq | MnO_Liq | MgO_Liq | CaO_Liq | Na2O_Liq | K2O_Liq | P2O5_Liq | H2O_Liq | Fe3Fet_Liq | Ni_Liq_ppm | Cu_Liq_ppm | SiO2_magma | TiO2_magma | Al2O3_magma | Fe2O3_magma | FeO_magma | MnO_magma | MgO_magma | CaO_magma | Na2O_magma | K2O_magma | P2O5_magma | Cr2O3_magma | Ni_magma | Cu_magma | Cr2O3_Liq | Ni_Liq | Cu_Liq | SiO2_cumulate | TiO2_cumulate | Al2O3_cumulate | Fe2O3_cumulate | FeO_cumulate | MnO_cumulate | MgO_cumulate | CaO_cumulate | Na2O_cumulate | K2O_cumulate | P2O5_cumulate | Cr2O3_cumulate | Ni_cumulate | Cu_cumulate | Temperature | Temperature_Olv | Olv_Fo_magma | Olv_Kd | Olv_Fo_cumulate | Pressure(kbar) | Lg(fO2) | dNNO | density | Ln(viscosity) | Melt_%_magma | Olv_%_magma | Olv_Peritectic | Fluid_%_magma | Olv_%_cumulate | Sample | Unnamed:58 | T_K | P_kbar | Fraction_melt | Sample_ID_Liq | SiO2_Liq_mol_frac | MgO_Liq_mol_frac | MnO_Liq_mol_frac | FeOt_Liq_mol_frac | CaO_Liq_mol_frac | Al2O3_Liq_mol_frac | Na2O_Liq_mol_frac | K2O_Liq_mol_frac | TiO2_Liq_mol_frac | P2O5_Liq_mol_frac | Si_Liq_cat_frac | Mg_Liq_cat_frac | Mn_Liq_cat_frac | Fet_Liq_cat_frac | Ca_Liq_cat_frac | Al_Liq_cat_frac | Na_Liq_cat_frac | K_Liq_cat_frac | Ti_Liq_cat_frac | P_Liq_cat_frac | Mg_Number_Liq_NoFe3 | Mg_Number_Liq_Fe3 | Fe2Fet_Liq_calc | Fe2_Liq_cat_frac | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0 | 0.013062 | -2.202857 | 12.716180 | -16.307958 | -4.324920 | 0.112443 | 49.9010 | 0.9981 | 14.9715 | 8.980926 | 0.0998 | 9.9763 | 11.9772 | 2.4953 | 0.1996 | 0.0998 | 0.0 | 0.098489 | 697.8 | 99.8 | 49.9010 | 0.9981 | 14.9715 | 0.9839 | 8.0964 | 0.0998 | 9.9763 | 11.9772 | 2.4953 | 0.1996 | 0.0998 | 0.0998 | 697.8 | 99.8 | 0.0998 | 697.8 | 99.8 | 40.2986 | 0 | 0 | 0 | 11.7372 | 0 | 46.9121 | 0 | 0 | 0 | 0 | 0 | 8257.6 | 10.0 | 1253.281 | 1253.281 | 87.69 | 0.308 | 87.69 | 1 | -7.72 | -0.7 | 2.683 | 6.25 | 99.9900 | 0 | N | 0 | 0.0100 | PetrologDefault | 08:21:15 | 1526.431 | 1 | 0.999900 | 0 | 0.512524 | 0.152750 | 0.000868 | 0.077140 | 0.131805 | 0.090614 | 0.024845 | 0.001308 | 0.007711 | 0.000434 | 0.458757 | 0.136726 | 0.000777 | 0.069048 | 0.117978 | 0.162217 | 0.044478 | 0.002341 | 0.006902 | 0.000777 | 0.664440 | 0.687150 | 0.899352 | 0.062098 |
1 | 0.012295 | -2.291531 | 12.838958 | -16.541783 | -4.386210 | 0.109061 | 49.9978 | 1.0081 | 15.1220 | 8.951296 | 0.1008 | 9.6064 | 12.0976 | 2.5203 | 0.2016 | 0.1008 | 0.0 | 0.097851 | 624.6 | 100.7 | 49.9978 | 1.0081 | 15.1220 | 0.9743 | 8.0754 | 0.1008 | 9.6064 | 12.0976 | 2.5203 | 0.2016 | 0.1008 | 0.1008 | 624.6 | 100.7 | 0.1008 | 624.6 | 100.7 | 40.2698 | 0 | 0 | 0 | 11.9273 | 0 | 46.7855 | 0 | 0 | 0 | 0 | 0 | 7984.5 | 10.0 | 1243.430 | 1243.430 | 87.28 | 0.309 | 87.49 | 1 | -7.83 | -0.7 | 2.682 | 6.38 | 98.9950 | 0 | N | 0 | 1.0050 | PetrologDefault | 08:21:15 | 1516.580 | 1 | 0.989950 | 1 | 0.514720 | 0.147431 | 0.000879 | 0.077066 | 0.133442 | 0.091739 | 0.025153 | 0.001324 | 0.007806 | 0.000439 | 0.460124 | 0.131793 | 0.000786 | 0.068892 | 0.119288 | 0.164017 | 0.044970 | 0.002367 | 0.006978 | 0.000785 | 0.656710 | 0.679537 | 0.898646 | 0.061909 |
2 | 0.011922 | -2.386549 | 12.969959 | -16.791165 | -4.417377 | 0.112759 | 50.0982 | 1.0185 | 15.2770 | 8.916645 | 0.1018 | 9.2279 | 12.2216 | 2.5462 | 0.2037 | 0.1018 | 0.0 | 0.097284 | 554.8 | 101.6 | 50.0982 | 1.0185 | 15.2770 | 0.9649 | 8.0492 | 0.1018 | 9.2279 | 12.2216 | 2.5462 | 0.2037 | 0.1018 | 0.1018 | 554.8 | 101.6 | 0.1018 | 554.8 | 101.6 | 40.2390 | 0 | 0 | 0 | 12.1280 | 0 | 46.6507 | 0 | 0 | 0 | 0 | 0 | 7708.8 | 10.1 | 1233.064 | 1233.064 | 86.83 | 0.310 | 87.27 | 1 | -7.94 | -0.7 | 2.681 | 6.52 | 97.9904 | 0 | N | 0 | 2.0096 | PetrologDefault | 08:21:15 | 1506.214 | 1 | 0.979904 | 2 | 0.516994 | 0.141963 | 0.000890 | 0.076952 | 0.135134 | 0.092903 | 0.025473 | 0.001341 | 0.007906 | 0.000445 | 0.461536 | 0.126734 | 0.000794 | 0.068697 | 0.120638 | 0.165874 | 0.045480 | 0.002394 | 0.007058 | 0.000794 | 0.648476 | 0.671438 | 0.897532 | 0.061658 |
3 | 0.011826 | -2.486488 | 13.107226 | -17.052315 | -4.425590 | 0.121808 | 50.2003 | 1.0289 | 15.4337 | 8.877334 | 0.1029 | 8.8486 | 12.3469 | 2.5723 | 0.2058 | 0.1029 | 0.0 | 0.096823 | 489.9 | 102.6 | 50.2003 | 1.0289 | 15.4337 | 0.9561 | 8.0178 | 0.1029 | 8.8486 | 12.3469 | 2.5723 | 0.2058 | 0.1029 | 0.1029 | 489.9 | 102.6 | 0.1029 | 489.9 | 102.6 | 40.2069 | 0 | 0 | 0 | 12.3359 | 0 | 46.5096 | 0 | 0 | 0 | 0 | 0 | 7436.5 | 10.1 | 1222.361 | 1222.361 | 86.36 | 0.311 | 87.05 | 1 | -8.05 | -0.7 | 2.680 | 6.67 | 96.9959 | 0 | N | 0 | 3.0041 | PetrologDefault | 08:21:15 | 1495.511 | 1 | 0.969959 | 3 | 0.519301 | 0.136457 | 0.000902 | 0.076798 | 0.136850 | 0.094083 | 0.025796 | 0.001358 | 0.008006 | 0.000451 | 0.462964 | 0.121653 | 0.000804 | 0.068467 | 0.122003 | 0.167752 | 0.045995 | 0.002421 | 0.007137 | 0.000803 | 0.639869 | 0.662987 | 0.896111 | 0.061354 |
4 | 0.011098 | -2.593890 | 13.254914 | -17.331682 | -4.489806 | 0.119144 | 50.3062 | 1.0397 | 15.5950 | 8.832002 | 0.1040 | 8.4612 | 12.4760 | 2.5992 | 0.2079 | 0.1040 | 0.0 | 0.096445 | 428.7 | 103.5 | 50.3062 | 1.0397 | 15.5950 | 0.9475 | 7.9802 | 0.1040 | 8.4612 | 12.4760 | 2.5992 | 0.2079 | 0.1040 | 0.1040 | 428.7 | 103.5 | 0.1040 | 428.7 | 103.5 | 40.1725 | 0 | 0 | 0 | 12.5558 | 0 | 46.3589 | 0 | 0 | 0 | 0 | 0 | 7162.8 | 10.2 | 1211.080 | 1211.080 | 85.84 | 0.312 | 86.81 | 1 | -8.18 | -0.7 | 2.679 | 6.83 | 95.9923 | 0 | N | 0 | 4.0077 | PetrologDefault | 08:21:15 | 1484.230 | 1 | 0.959923 | 4 | 0.521687 | 0.130806 | 0.000913 | 0.076596 | 0.138624 | 0.095302 | 0.026130 | 0.001375 | 0.008110 | 0.000457 | 0.464439 | 0.116452 | 0.000813 | 0.068190 | 0.123411 | 0.169687 | 0.046526 | 0.002449 | 0.007220 | 0.000813 | 0.630682 | 0.653976 | 0.895277 | 0.061049 |
[29]:
fig, (ax1) = plt.subplots(1, 1, figsize=(6,5))
ax1.plot(df_out['MgO_Liq'], 100*Jugo_Frost_S6, '-r', label='Jugo-Frost-recalc')
ax1.plot(df_out['MgO_Liq'], 100*Nash_S6, '-k', label='Jugo-Boro')
ax1.plot(df_out['MgO_Liq'], 100*S6_ONeill['S6St_Liq'], '-m', label='O21-22')
ax1.set_xlabel('MgO Liquid (wt%)')
ax1.set_ylabel('S6/ST (%)')
ax1.set_xlim([2, 10])
[29]:
(2.0, 10.0)
Perform correction
[30]:
# Perfrom correction using Nash
SCSS_Tot_Nash_Recalc_Smythe=ss.calculate_SCSS_Total(SCSS=Smythe_ONeillSulf['SCSS2_ppm_ideal_Smythe2017'],
S6St_Liq=Nash_S6)
# Using Jugo
SCSS_Tot_Jugo_Recalc_Smythe=ss.calculate_SCSS_Total(SCSS=Smythe_ONeillSulf['SCSS2_ppm_ideal_Smythe2017'],
S6St_Liq=Jugo_Frost_S6)
fig, (ax1) = plt.subplots(1, 1, figsize=(6,5))
ax1.plot(Smythe_ONeillSulf['MgO_Liq'], Smythe_ONeillSulf['SCSS2_ppm_ideal_Smythe2017'],
'-g', label='S2017, O2021 Calc Sulf, S2-')
ax1.plot(Smythe_ONeillSulf['MgO_Liq'], SCSS_Tot_Jugo_Recalc_Smythe,
':k', label='S2017, O2021 Calc Sulf, ST Jugo')
ax1.plot(Smythe_ONeillSulf['MgO_Liq'], SCSS_Tot_Nash_Recalc_Smythe,
'-b', label='S2017, O2021 Calc Sulf, ST Nash')
ax1.set_xlabel('MgO')
ax1.set_ylabel('SCSS')
ax1.legend()
[30]:
<matplotlib.legend.Legend at 0x24d8ba8e2d0>
[31]:
SCSS_Tot_ONeill_Smythe=ss.calculate_SCSS_Total(SCSS=Smythe_ONeillSulf['SCSS2_ppm_ideal_Smythe2017'],
S6St_Liq=S6_ONeill['S6St_Liq'])
fig, (ax1) = plt.subplots(1, 1, figsize=(6,5))
ax1.plot(Smythe_ONeillSulf['MgO_Liq'], Smythe_ONeillSulf['SCSS2_ppm_ideal_Smythe2017'],
'-g', label='S2017, O2021 Calc Sulf, S2-')
ax1.plot(Smythe_ONeillSulf['MgO_Liq'], SCSS_Tot_Jugo_Recalc_Smythe,
':k', label='S2017, O2021 Calc Sulf, ST Jugo')
ax1.plot(Smythe_ONeillSulf['MgO_Liq'], SCSS_Tot_Nash_Recalc_Smythe,
'-b', label='S2017, O2021 Calc Sulf, ST Nash')
ax1.set_xlabel('MgO')
ax1.set_ylabel('SCSS')
ax1.legend()
ax1.plot(Smythe_ONeillSulf['MgO_Liq'], SCSS_Tot_ONeill_Smythe,
'-m', label='S2017, O2021 Calc Sulf, ST from ONeill 21-22')
ax1.set_xlabel('MgO')
ax1.set_ylabel('SCSS')
ax1.legend()
ax1.set_xlim([2, 10])
ax1.set_ylim([0, 2000])
[31]:
(0.0, 2000.0)
[ ]:
[ ]:
[ ]:
